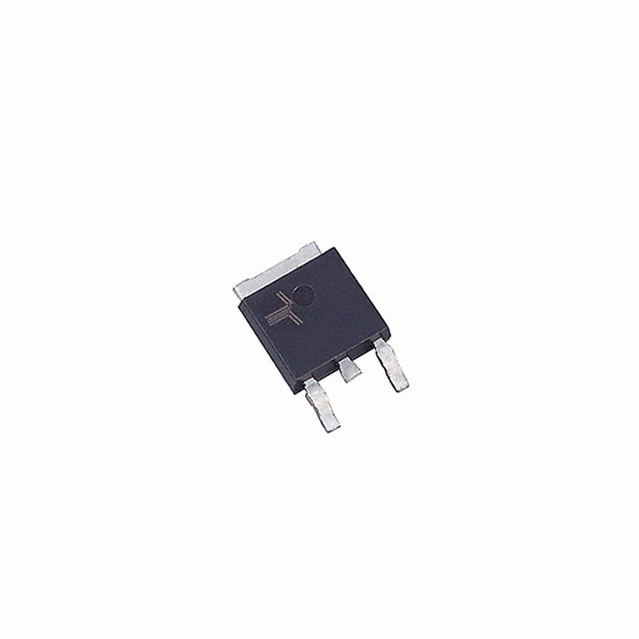

Teccor牌晶闸管12安培标准的SCR Teccor brand Thyristors 12 Amp Standard SCRs
SCR 标准恢复型 表面贴装型 TO-252,(D-Pak)
得捷:
SCR 400V 12A TO252
贸泽:
SCRs 12A 400V
艾睿:
Look no further than this scr S4012DRP thyristor manufactured from Littelfuse for a bistable switch being controlled by an impulse current. This device has a surge current rating of 120 A. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its repetitive peak forward blocking voltage is 400Min V, while its repetitive peak reverse voltage is 400Min V. This SCR thyristor has a minimum operating temperature of -40 °C and a maximum of 125 °C.
Win Source:
SCR NON-SENS 400V 12A TO-252AA
触点数 2
额定电压DC 30 V
额定电压AC 125 V
额定电流 12 A
正向电压 1.6 V
保持电流 40.0 mA
保持电流Max 40 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
长度 6.63 mm
宽度 6.2 mm
高度 2.39 mm
封装 TO-252-3
工作温度 -40℃ ~ 125℃
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
S4012DRP Littelfuse 力特 | 当前型号 | 当前型号 |
S4012VTP 力特 | 完全替代 | S4012DRP和S4012VTP的区别 |
S6012DRP 力特 | 类似代替 | S4012DRP和S6012DRP的区别 |
S8012DRP 力特 | 类似代替 | S4012DRP和S8012DRP的区别 |
