STMICROELECTRONICS STPS20M60CR 小信号肖特基二极管, 双共阴极, 60 V, 20 A, 570 mV, 300 A, 150 °C
肖特基势垒,20A 至 25A,STMicroelectronics
得捷:
DIODE ARRAY SCHOTTKY 60V I2PAK
欧时:

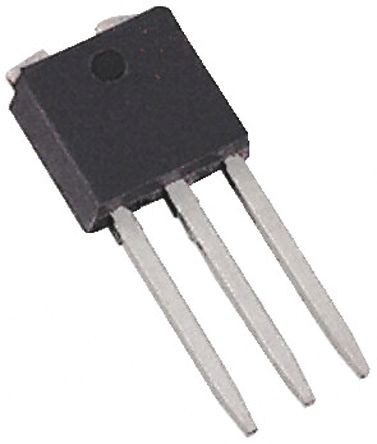

STMicroelectronics 二极管 STPS20M60CR 肖特基, Io=20A, Vrev=60V, 3引脚 I2PAK TO-262封装
e络盟:
# STMICROELECTRONICS STPS20M60CR 小信号肖特基二极管, 双共阴极, 60 V, 20 A, 570 mV, 300 A, 150 °C
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode STPS20M60CR rectifier from STMicroelectronics. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It is made in a dual common cathode configuration. Its peak non-repetitive surge current is 300 A, while its maximum continuous forward current is 20 A. This rectifier has an operating temperature range of -65 °C to 150 °C.
Chip1Stop:

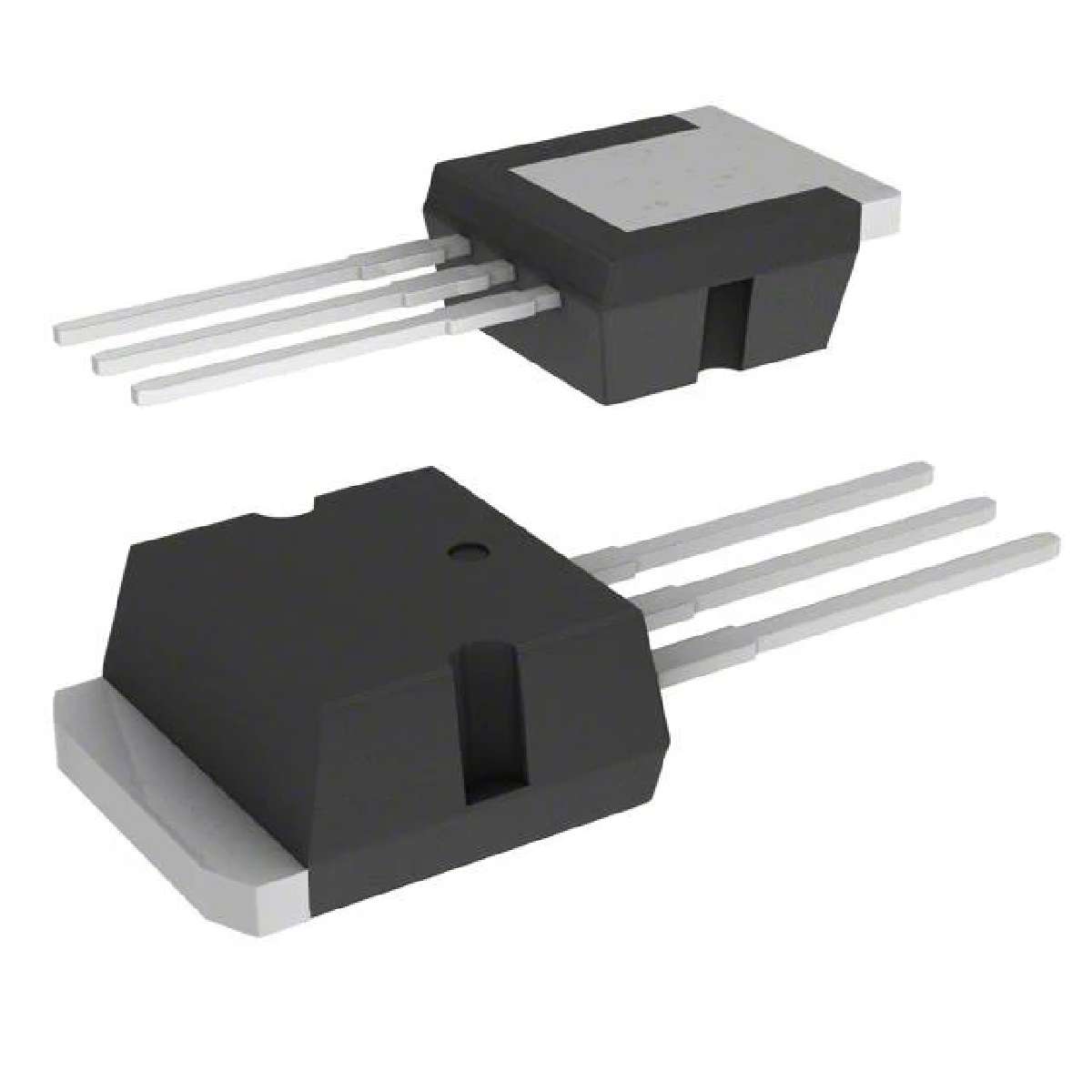

Diode Schottky 60V 20A 3-Pin3+Tab I2PAK Tube
针脚数 3
正向电压 570mV @10A
正向电流 20 A
最大正向浪涌电流(Ifsm) 300 A
正向电压Max 570 mV
正向电流Max 20 A
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 150℃ Max
安装方式 Through Hole
引脚数 3
封装 TO-262-3
长度 10.4 mm
宽度 4.6 mm
高度 10.75 mm
封装 TO-262-3
产品生命周期 Not Recommended for New Designs
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
