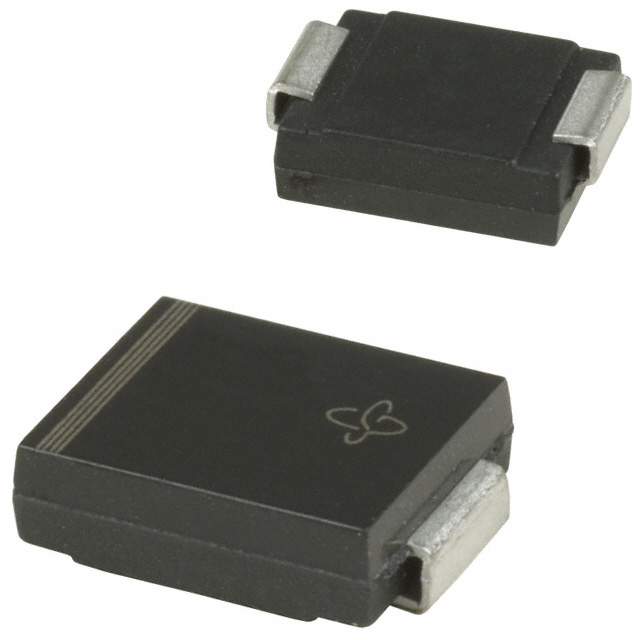

表面贴装的TransZorb ?瞬态电压抑制器 Surface Mount TRANSZORB® Transient Voltage Suppressors
FEATURES
• Low profile package
• Ideal for automated placement
• Glass passivated chip junction
• Available in uni-directional and bi-directional
• 1500 W peak pulse power capability with a 10/1000 μs waveform
• Excellent clamping capability
• Low inductance
• Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
• AEC-Q101 qualified
• Material categorization: For definitions of compliance please see www.vishay.com/doc?99912
TYPICAL APPLICATIONS
Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive, and telecommunication.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SM15T10A-E3/57T Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SM15T10AHE3/9AT 威世 | 完全替代 | SM15T10A-E3/57T和SM15T10AHE3/9AT的区别 |
SM15T10A-E3/9AT 威世 | 完全替代 | SM15T10A-E3/57T和SM15T10A-E3/9AT的区别 |
SM15T10A 威世 | 功能相似 | SM15T10A-E3/57T和SM15T10A的区别 |
