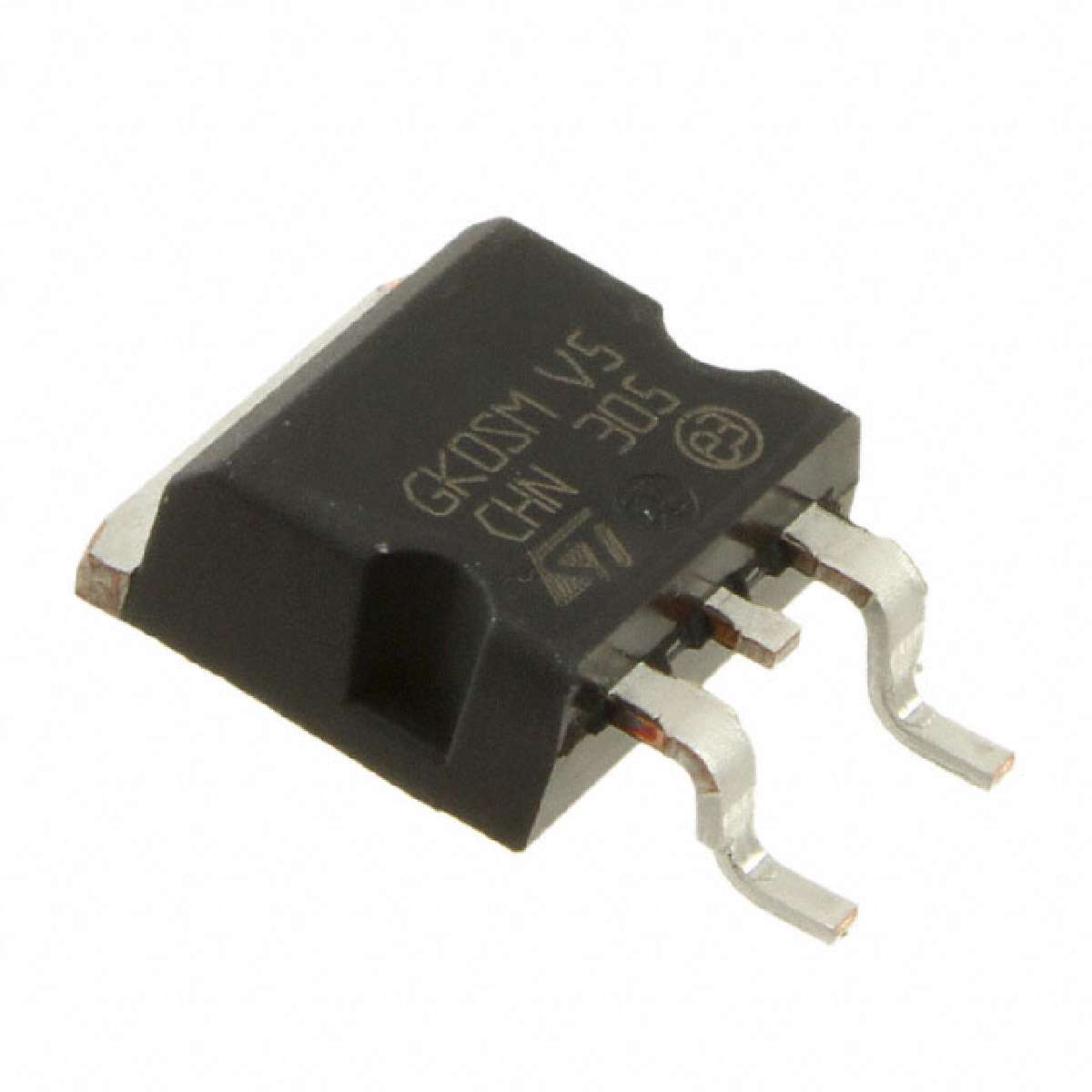

STMICROELECTRONICS STPS30M60CG-TR Small Signal Schottky Diode, Dual Common Cathode, 60V, 30A, 590mV, 400A, 150℃
The is a Power Schottky Rectifier featuring high current capability and high frequency operation. This dual diode Schottky rectifier suited for high frequency switch mode power supply. It is packaged in D²PAK intended to be used in notebook, game station and desktop adapters, providing in these applications a good efficiency at both low and high load.
- .
- Avalanche rated
- .
- Low forward voltage drop
- .
- 150°C Operating junction temperature maximum
正向电压 590mV @15A
正向电流 30 A
最大正向浪涌电流（Ifsm） 400 A
正向电压Max 590 mV
正向电流Max 30 A
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 150℃ Max
安装方式 Surface Mount
引脚数 3
封装 TO-263-3
封装 TO-263-3
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Hobby & Education, Consumer Electronics, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
STPS30M60CG-TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
VBT30L60C-E3/4W 威世 | 功能相似 | STPS30M60CG-TR和VBT30L60C-E3/4W的区别 |
