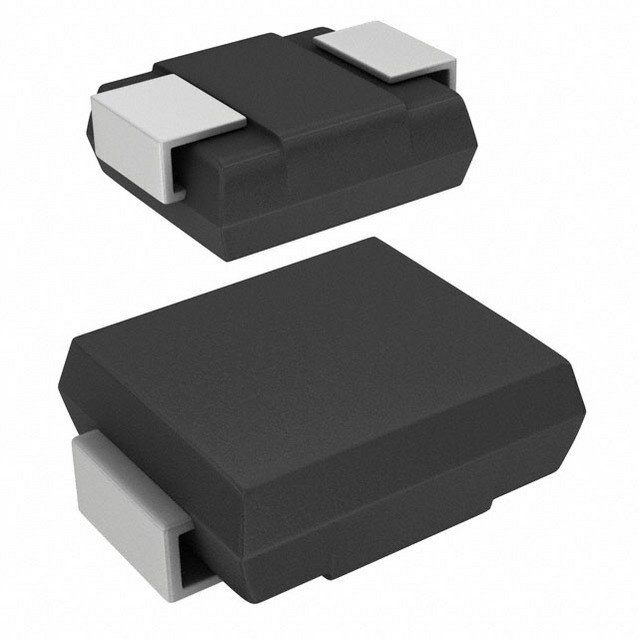

双向 15V 1500W
24.4V 夹子 61.5A Ipp TVS - 表面贴装型 DO-214AB(SMC)
得捷:
TVS DIODE 15VWM 24.4VC DO214AB
立创商城:
双向 Vrwm:15V 1.5kW
贸泽:
ESD Suppressors / TVS Diodes 15V 1500 Watts
艾睿:
Protect your critical electronic applications from sudden overvoltage conditions with this SMCJ15CA-TP TVS diode from Micro Commercial Components. This device&s;s maximum clamping voltage is 24.4 V and minimum breakdown voltage is 16.7 V. Its test current is 1 mA. Its maximum leakage current is 5 μA. Its peak pulse power dissipation is 1500Min W. This TVS diode has an operating temperature range of -55 °C to 175 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery.
Chip1Stop:
Diode TVS Single Bi-Dir 15V 1.5KW 2-Pin SMC T/R
额定电压DC 15.0 V
额定功率 1.50 kW
击穿电压 16.7 V
电路数 1
耗散功率 1.5 kW
钳位电压 24.4 V
测试电流 1 mA
脉冲峰值功率 1500 W
最小反向击穿电压 16.7 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMCJ15CA-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SMCJ15CA-13 美台 | 类似代替 | SMCJ15CA-TP和SMCJ15CA-13的区别 |
SMCJ15CA 力特 | 功能相似 | SMCJ15CA-TP和SMCJ15CA的区别 |
