双向 13V 1500W

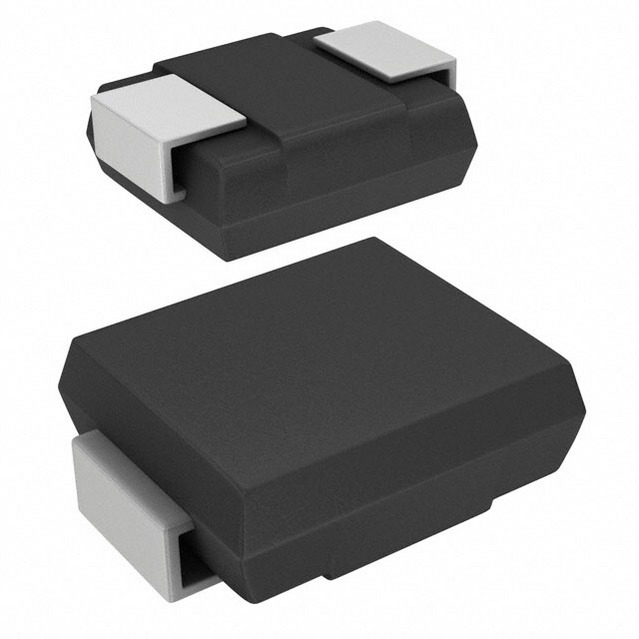

21.5V 夹子 69.8A Ipp TVS - 表面贴装型 DO-214AB（SMC）
立创商城:
双向 Vrwm:13V 1.5kW
得捷:
TVS DIODE 13VWM 21.5VC DO214AB
艾睿:
This SMCJ13CA-TP TVS diode from Micro Commercial Components protects against overvoltages. Its maximum leakage current is 5 μA. Its test current is 1 mA. This device&s;s maximum clamping voltage is 21.5 V and minimum breakdown voltage is 14.4 V. Its peak pulse power dissipation is 1500Min W. This TVS diode has an operating temperature range of -55 °C to 175 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery.
额定电压DC 13.0 V
额定功率 1.50 kW
钳位电压 21.5 V
测试电流 1 mA
脉冲峰值功率 1500 W
最小反向击穿电压 14.4 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMCJ13CA-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SMCJ13CA-E3/57T 威世 | 类似代替 | SMCJ13CA-TP和SMCJ13CA-E3/57T的区别 |
SMCJ13CA 伯恩斯 | 功能相似 | SMCJ13CA-TP和SMCJ13CA的区别 |
