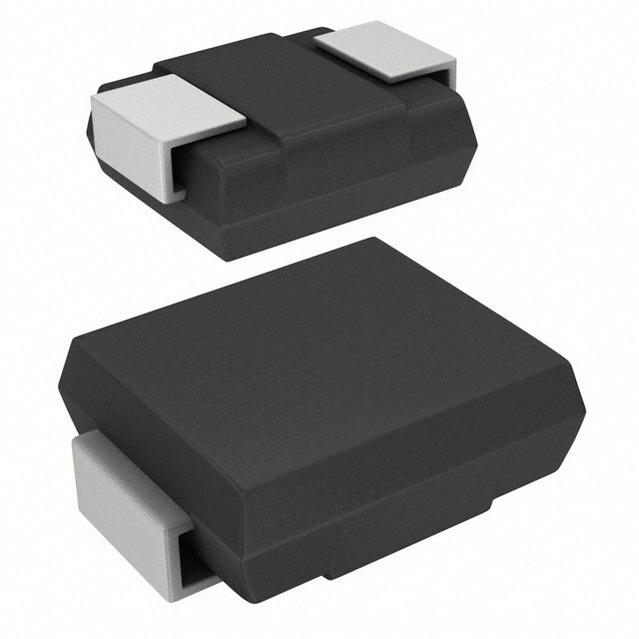

双向 22V 1500W
35.5V 夹子 42.3A Ipp TVS - 表面贴装型 DO-214AB(SMC)
得捷:
TVS DIODE 22VWM 35.5VC DO214AB
立创商城:
双向 Vrwm:22V 1.5kW
艾睿:
Do not risk expensive equipment and machinery from surges with this SMCJ22CA-TP TVS diode from Micro Commercial Components. This device&s;s maximum clamping voltage is 35.5 V and minimum breakdown voltage is 24.4 V. Its test current is 1 mA. Its peak pulse power dissipation is 1500Min W. Its maximum leakage current is 5 μA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.
额定电压DC 22.0 V
额定功率 1.50 kW
钳位电压 35.5 V
最大反向电压(Vrrm) 22V
测试电流 1 mA
脉冲峰值功率 1500 W
最小反向击穿电压 24.4 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMCJ22CA-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SMCJ22CA 威世 | 类似代替 | SMCJ22CA-TP和SMCJ22CA的区别 |
SMCJ22CA-E3/57T 威世 | 功能相似 | SMCJ22CA-TP和SMCJ22CA-E3/57T的区别 |
