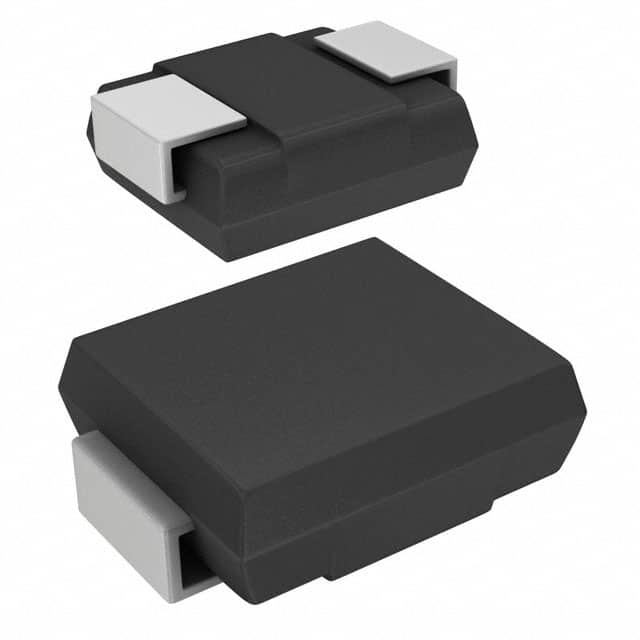

Diode TVS Single Bi-Dir 6V 1.5kW 2Pin SMC T/R
Features
• Lead Free Finish/Rohs Compliant Note1 "P"Suffix designates Compliant. See ordering information
• For surface mount application in order to optimize board space
• Built-in strain relief
• Glass passivated junction
• Typical ID less than 1uA above 10V
• High temperature soldering: 260oC/10 seconds at terminals
• Plastic package has Underwrites Laboratory Flammability
• Halogen free available upon request by adding suffix "-HF"
• UL Recognized File # E331408
额定电压DC 60.0 V
额定功率 1.50 kW
钳位电压 10.3 V
测试电流 10 mA
脉冲峰值功率 1500 W
最小反向击穿电压 6.7 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMCJ6.0CA-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SMCJ6.0CA 光宝 | 类似代替 | SMCJ6.0CA-TP和SMCJ6.0CA的区别 |
SMCJ6.0C-TP 美微科 | 类似代替 | SMCJ6.0CA-TP和SMCJ6.0C-TP的区别 |
