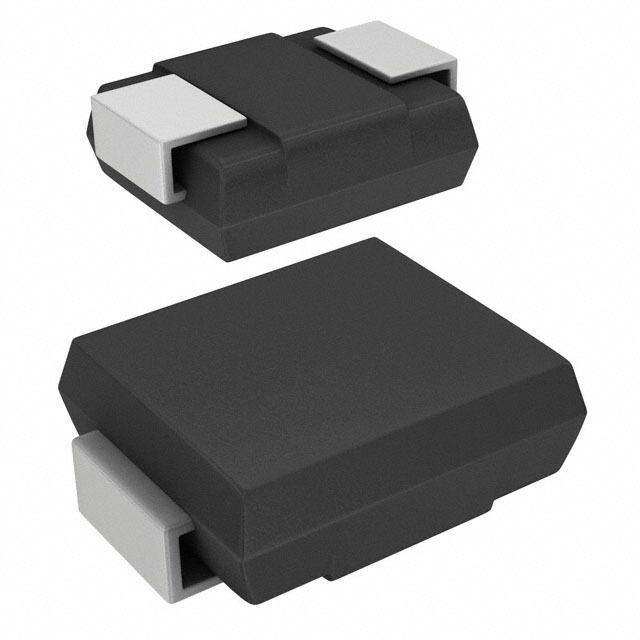

SMCJ1.5KE18CA-TP

ESD 抑制器/TVS 二极管 25.5V 1500W 60.3A

25.5V 夹子 60.3A Ipp TVS - 表面贴装型 DO-214AB（SMC）

得捷:
TVS DIODE 15.3VWM 25.5VC DO214AB

立创商城:
双向 Vrwm:15.3V 1.5kW

贸泽:
ESD 抑制器/TVS 二极管 25.5V 1500W 60.3A

艾睿:
Micro Commercial Components&s; SMCJ1.5KE18CA-TP TVS diode is designed to protect electronic components and circuits from electrical overstress from overvoltage and electrostatic discharge. Its test current is 1 mA. Its maximum leakage current is 5 μA. This device&s;s maximum clamping voltage is 25.5 V and minimum breakdown voltage is 17.1 V. Its peak pulse power dissipation is 1500 W. This TVS diode has an operating temperature range of -55 °C to 175 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.

Chip1Stop:
Diode TVS Single Bi-Dir 15.3V 1.5KW 2-Pin SMC T/R
