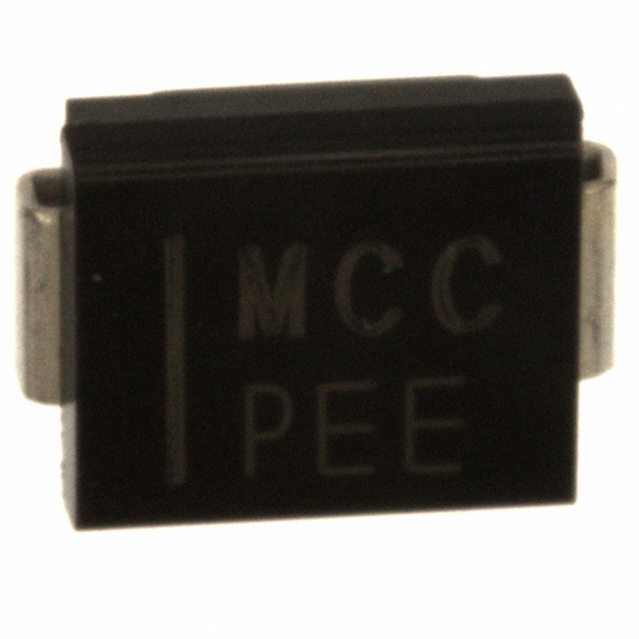

Diode TVS Single Uni-Dir 45V 1.5kW 2Pin SMC T/R
72.7V 夹子 20.6A Ipp TVS - 表面贴装型 DO-214AB（SMC）
立创商城:
Vrwm:45V 1.5kW
得捷:
TVS DIODE 45VWM 72.7VC DO214AB
艾睿:
Protect users and systems from overvoltage conditions by equipping your electronic equipment with Micro Commercial Components&s; SMCJ45A-TP TVS diode. Its peak pulse power dissipation is 1500Min W. Its maximum leakage current is 5 μA. Its test current is 1 mA. This device&s;s maximum clamping voltage is 72.7 V and minimum breakdown voltage is 50 V. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.
额定电压DC 45.0 V
额定功率 1.50 kW
钳位电压 72.7 V
测试电流 1 mA
最大正向浪涌电流（Ifsm） 200 A
脉冲峰值功率 1500 W
最小反向击穿电压 50 V
正向电压Max 3.5 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMCJ45A-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SMCJ45A 伯恩斯 | 功能相似 | SMCJ45A-TP和SMCJ45A的区别 |
1.5SMC51A 力特 | 功能相似 | SMCJ45A-TP和1.5SMC51A的区别 |
