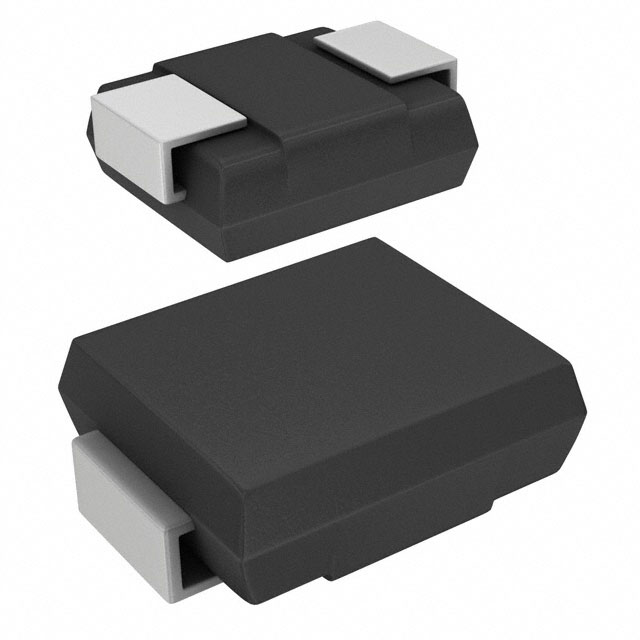

SMCJ1.5KE56CA-TP

双向 47.8V

77V Clamp 19.7A Ipp Tvs Diode Surface Mount DO-214AB SMC

得捷:
TVS DIODE 47.8VWM 77VC DO214AB

立创商城:
双向 Vrwm:47.8V 1.5kW

艾睿:
Prevent your circuits from experiencing malfunctions from electrostatic discharge with this SMCJ1.5KE56CA-TP TVS diode from Micro Commercial Components. Its peak pulse power dissipation is 1500 W. Its test current is 1 mA. This device&s;s maximum clamping voltage is 77 V and minimum breakdown voltage is 53.2 V. Its maximum leakage current is 5 μA. This TVS diode has an operating temperature range of -55 °C to 175 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.

Chip1Stop:
Diode TVS Single Bi-Dir 47.8V 1.5KW 2-Pin SMC T/R
