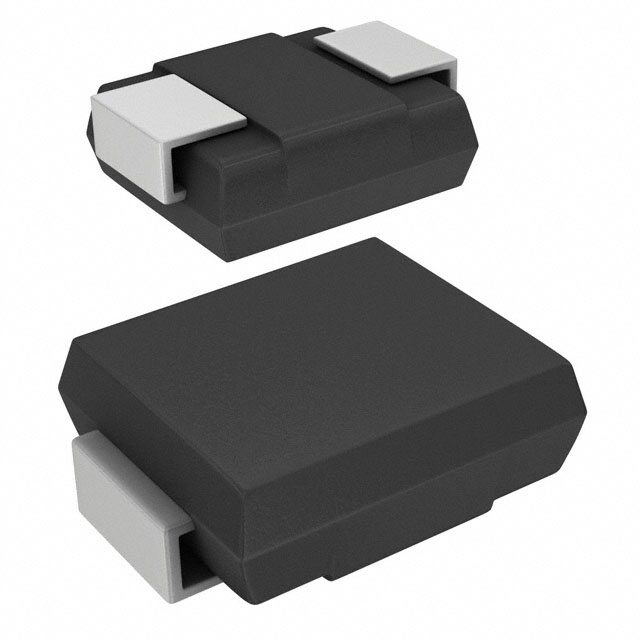

Diode TVS Single Uni-Dir 11.1V 1.5kW 2Pin SMC T/R
18.2V Clamp 83.5A Ipp Tvs Diode Surface Mount DO-214AB SMC
得捷:
TVS DIODE 11.1VWM 18.2VC DO214AB
立创商城:
Vrwm:11.1V 1.5kW
贸泽:
ESD Suppressors / TVS Diodes 18.2V 1500W 83.5A
艾睿:
Surges can be a costly problem, avoid the pain and suffering by implementing this SMCJ1.5KE13A-TP TVS diode from Micro Commercial Components. Its peak pulse power dissipation is 1500 W. Its test current is 1 mA. This device&s;s maximum clamping voltage is 18.2 V and minimum breakdown voltage is 12.4 V. Its maximum leakage current is 5 μA. This TVS diode has an operating temperature range of -55 °C to 175 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.
Chip1Stop:
Diode TVS Single Uni-Dir 11.1V 1.5KW 2-Pin SMC T/R
击穿电压 13.7 V
电路数 1
耗散功率 1.5 kW
钳位电压 18.2 V
测试电流 1 mA
脉冲峰值功率 1500 W
最小反向击穿电压 12.4 V
工作温度Max 150 ℃
工作温度Min 55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
长度 7.11 mm
宽度 8.13 mm
高度 2.62 mm
封装 DO-214AB
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMCJ1.5KE13A-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SMCJ110A-TP 美微科 | 类似代替 | SMCJ1.5KE13A-TP和SMCJ110A-TP的区别 |
SMCJ110A 力特 | 功能相似 | SMCJ1.5KE13A-TP和SMCJ110A的区别 |
