STEVAL-PCC012V1

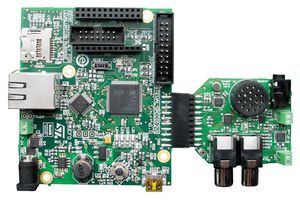

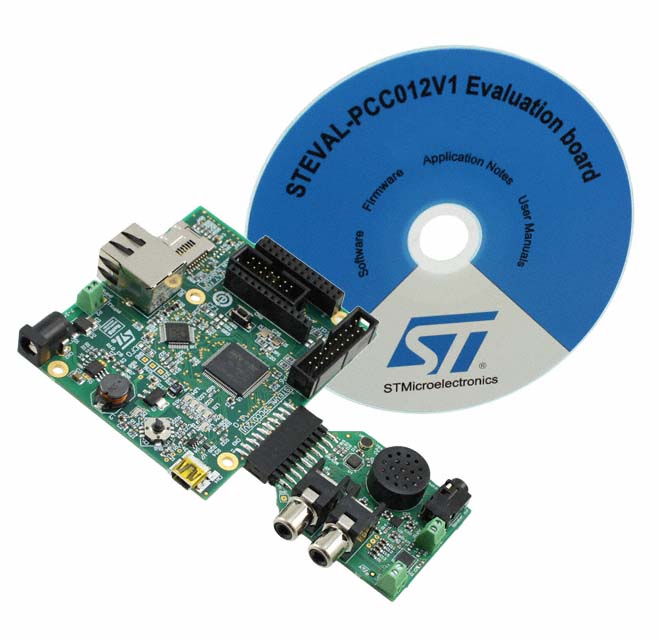

基于STM32F107连接网关演示板 Connectivity gateway demonstration board based on the STM32F107

demonstration board is equipped with an ethernet interface, four digital/analog extension connectorsI2C, SPI, etc., footprint positions for two different Wi-Fi modules, an OFDM PRIME power line networking extension connector and a microSD card socket with SPI interface. It also features a 5 way joystick, four general purpose LEDs and two LEDs dedicated to the user interface. The demonstration board also includes digital/analog input/output connectors with pinouts compatible with other demonstration boards. Board can be supplied from a standard DC power supply 7V to 35V DC, or directly using a 24VDC industrial mains supply.

.

Offers ethernet, USB OTG and general purpose extension connector

.

Two positions for optional WiFi modules

.

A microSD card socket

.

Digital/analog extension connector compatible with STEVAL-MKI0xxV1, STEVAL-CCA021V1 extension boards

.

Compatible with ST7590 PRIME board i.e narrow band OFDM

.

JTAG interface for microcontroller firmware change/update

.

DC/DC power supply using the L7986A

.

Stand alone demonstration firmware, on board LEDs and joystick
