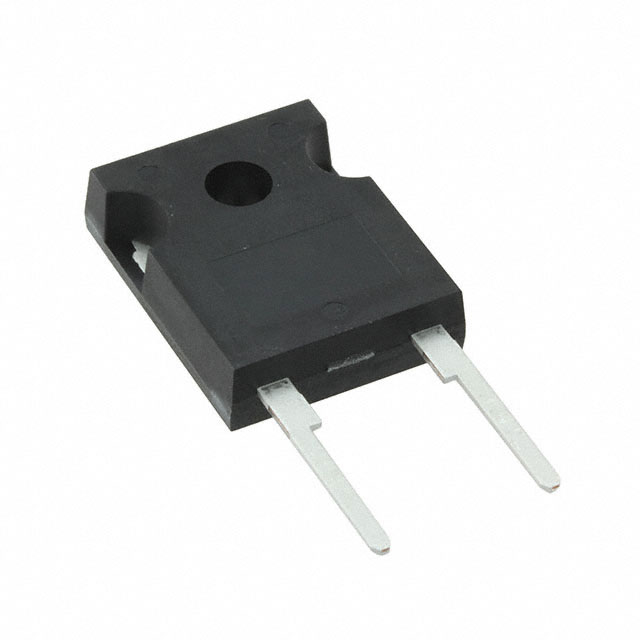

STMICROELECTRONICS STTH3010W 快速/超快功率二极管, 单, 1 kV, 20 A, 1.3 V, 42 ns, 180 A
The is a high voltage ultrafast Recovery Diode. The high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy duty applications that demand long term reliability. Such demanding applications include similar mission-critical systems that require rectification and freewheeling. This diode also fit into auxiliary functions such as snubber, bootstrap and demagnetization applications. The improved performance in low leakage current and therefore thermal runaway guard band, is an immediate competitive advantage for this device.
额定电压DC 1.00 kV
额定电流 30.0 A
电容 12.0 pF
输出电流 ≤30.0 A
正向电压 2V @30A
极性 Standard
热阻 1.1 ℃/W
反向恢复时间 42 ns
正向电流 20 A
最大正向浪涌电流(Ifsm) 180 A
正向电压Max 1.3 V
正向电流Max 30 A
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 175℃ Max
工作结温Max 175 ℃
安装方式 Through Hole
引脚数 2
封装 DO-247-2
长度 15.75 mm
宽度 5.15 mm
高度 20.15 mm
封装 DO-247-2
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
制造应用 Power Management, 电源管理, Motor Drive & Control, 电机驱动与控制, 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STTH3010W ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STTH3010WY 意法半导体 | 类似代替 | STTH3010W和STTH3010WY的区别 |
APT15DQ100BG 美高森美 | 功能相似 | STTH3010W和APT15DQ100BG的区别 |
