PIN Photodiodes Sidelooker PackageA range of photodiodes, from OSRAM Opto Semiconductors, are in Sidelooker through-hole packages. The SFH 206 K, from OSRAM Opto Semiconductors, is a PIN photodiode within a Sidelooker package. The SFH 206 K has a 5mm LED clear plastic package and is through-hole mounted. Suitable applications for this photodiode include; photointerrupters, industrial electronics, computer-controlled flashes and for control/drive circuits. Features of the SFH 206 K photodiode: Side looking package Through-hole mounted 5mm clear package Radiant sensitive area: 2.65 mm² For 400 to 1100 nm applications Short switching time Acceptance angle: 120° ### 光电二极管，OSRAM Opto Semiconductors
PIN Photodiodes Sidelooker Package
A range of photodiodes, from OSRAM Opto Semiconductors, are in Sidelooker through-hole packages.

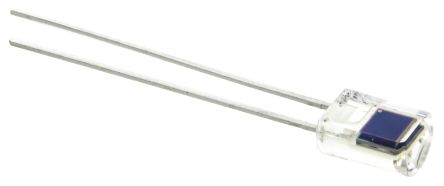

The , from OSRAM Opto Semiconductors, is a PIN photodiode within a Sidelooker package. The SFH 206 K has a 5mm LED clear plastic package and is through-hole mounted. Suitable applications for this photodiode include; photointerrupters, industrial electronics, computer-controlled flashes and for control/drive circuits.
Features of the SFH 206 K photodiode:
Side looking package
Through-hole mounted
5mm clear package
Radiant sensitive area: 2.65 mm²
For 400 to 1100 nm applications
Short switching time
Acceptance angle: 120°
### ，OSRAM Opto Semiconductors
针脚数 2
正向电压 1.3 V
波长 850 nm
视角 60°
峰值波长 850 nm
耗散功率 150 mW
上升时间 20 ns
正向电流 100 mA
正向电压Max 1.3 V
下降时间 20 ns
下降时间Max 20 ns
上升时间Max 20 ns
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 150 mW
安装方式 Through Hole
引脚数 2
封装 T-1
长度 5.1 mm
宽度 4.1 mm
高度 6.9 mm
直径 4.90 mm
脚长度 26.4 mm
封装 T-1
外壳材质 Plastic
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SFH 206 K Osram Opto 欧司朗 | 当前型号 | 当前型号 |
SFH206K 欧司朗 | 类似代替 | SFH 206 K和SFH206K的区别 |
