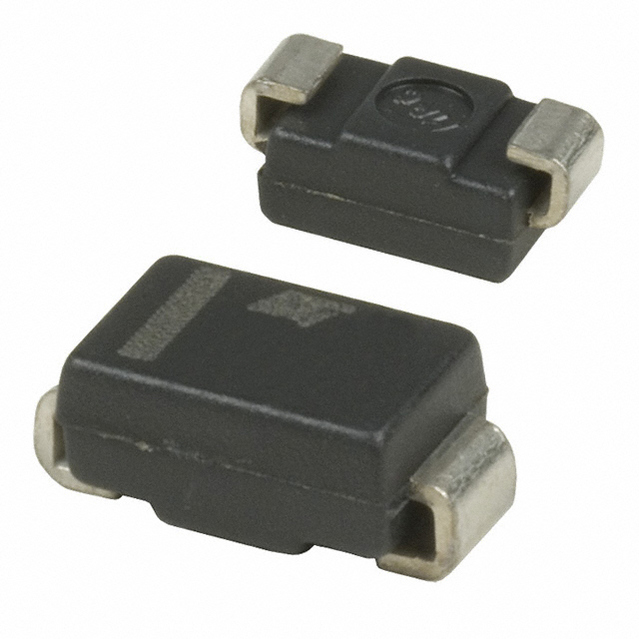

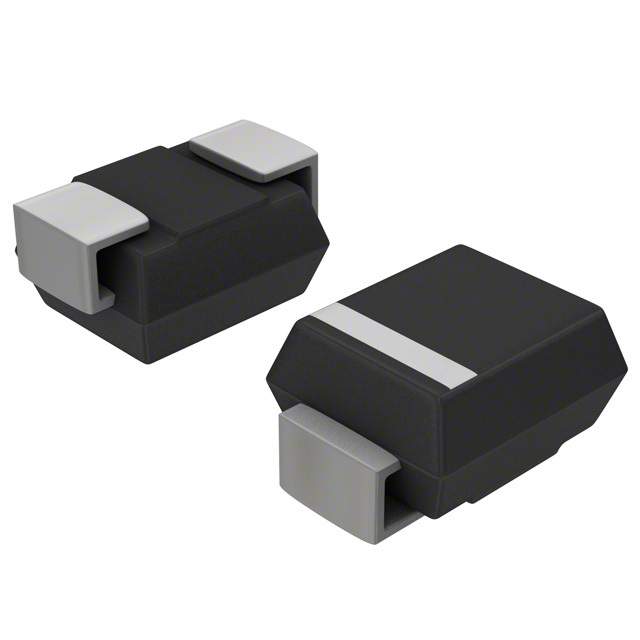

STMICROELECTRONICS SMP30-68 TVS二极管, TVS, Trisil SMP30系列, 双向, 61 V, DO-214AC, 2 引脚
Never worry about the loss of your expensive electronics or appliances again with this SCR thyristor from STMicroelectronics, it will take care of surges. This device has a surge current rating of 14. This SCR thrysitor has an operating temperature range of -55 °C to 150 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its repetitive peak forward blocking voltage is 68 V, while its repetitive peak reverse voltage is 68 V.
额定电压DC 68.0 V
电容 40 pF
击穿电压 68.0 V
针脚数 2
保持电流 150 mA
最大反向击穿电压 68 V
保持电流Max 150mA Min
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.6 mm
宽度 2.95 mm
高度 2.03 mm
封装 DO-214AC
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMP30-68 ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
TA0720L 光宝 | 功能相似 | SMP30-68和TA0720L的区别 |
