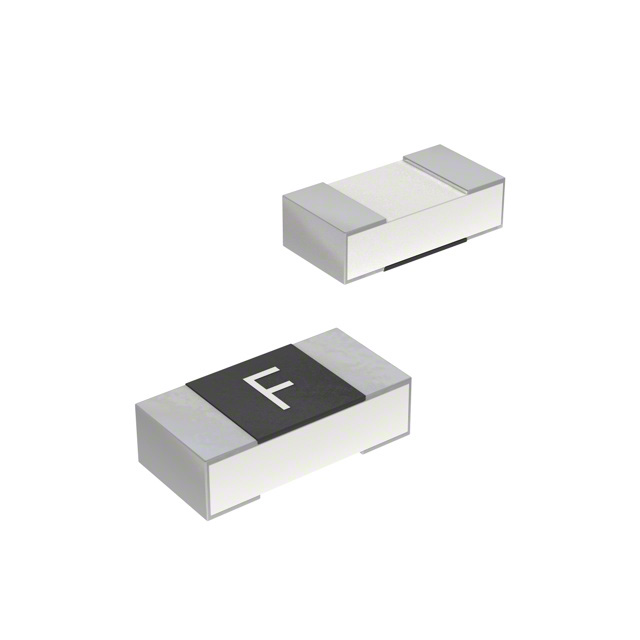

BOURNS SF-0603S080-2 保险丝, PTC, 0.8A, 32V, 0603
800 mA AC 32 V 直流 板安装（不包括管筒式） 表面贴装型 0603（1608 公制）
得捷:
FUSE BOARD MNT 800MA 32VDC 0603
立创商城:
SF-0603S080-2
e络盟:
表面安装保险丝, 800 mA, SF-0603S系列, 32 VDC, 缓慢熔断, 0603
艾睿:
A great alternative to a circuit breaker, this a chip SF-0603S080-2 fuse from Bourns will protect your electronics. This device has a current rating of 0.8. It has 2 terminals. The SF-0603S080-2 fuse has a solder pad termination style. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. The maximum DC voltage rating is 32 VDC. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep.
安富利:
Fuse Chip 0.8A 32V Slow Blow 2-Pin Solder Pad Surface Mount T/R
Verical:
Fuse Chip Slow Blow Acting 0.8A 32V SMD Solder Pad 0603 Ceramic T/R UL
Newark:
# BOURNS SF-0603S080-2 Fuse, Surface Mount, SinglFuse SF-0603S Series, 800 mA, 32 V, Slow Blow, 0603
额定电压DC 32 V
额定电压AC 35 V
额定电流 0.8 A
电阻 0.093 Ω
工作温度Max 105 ℃
工作温度Min -20 ℃
额定电压 32 V
额定电压DC Max 32 V
额定电压AC Max 35 V
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.45 mm
封装公制 1608
封装 0603
工作温度 -20℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SF-0603S080-2 Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
FCC16801ADTP Kamaya Electric | 功能相似 | SF-0603S080-2和FCC16801ADTP的区别 |
