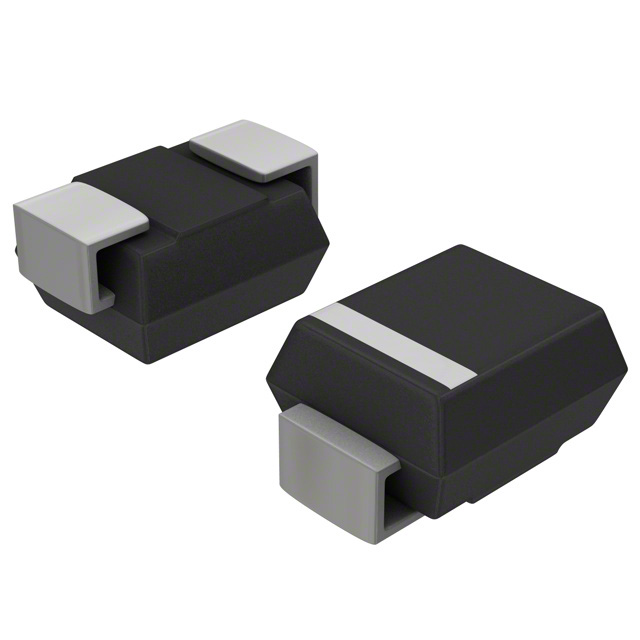

TVS Diodes - Transient Voltage Suppressors 600W 4kW Transil SMA 5V to 70V Bi
This tvs ESD protection device from STMicroelectronics protects against electrostatic discharge. This device"s maximum clamping voltage is 13.4 V. This ESD diode has a maximum ESD protection device voltage of 30@Air Gap/30@Contact Disc kV. This ESD diode has an operating temperature range of -40 °C to 150 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It is made in a single configuration.
工作电压 5 V
击穿电压 6.7 V
电路数 1
钳位电压 13.4 V
测试电流 1 mA
脉冲峰值功率 600 W
最小反向击穿电压 6.4 V
工作温度Max 150 ℃
工作温度Min -40 ℃
工作结温 -40℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.6 mm
宽度 5.35 mm
高度 2.45 mm
封装 DO-214AC
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMA6T6V7CAY ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
SMA6J5.0CA-TR 意法半导体 | 类似代替 | SMA6T6V7CAY和SMA6J5.0CA-TR的区别 |
