SMCJ9V0CA

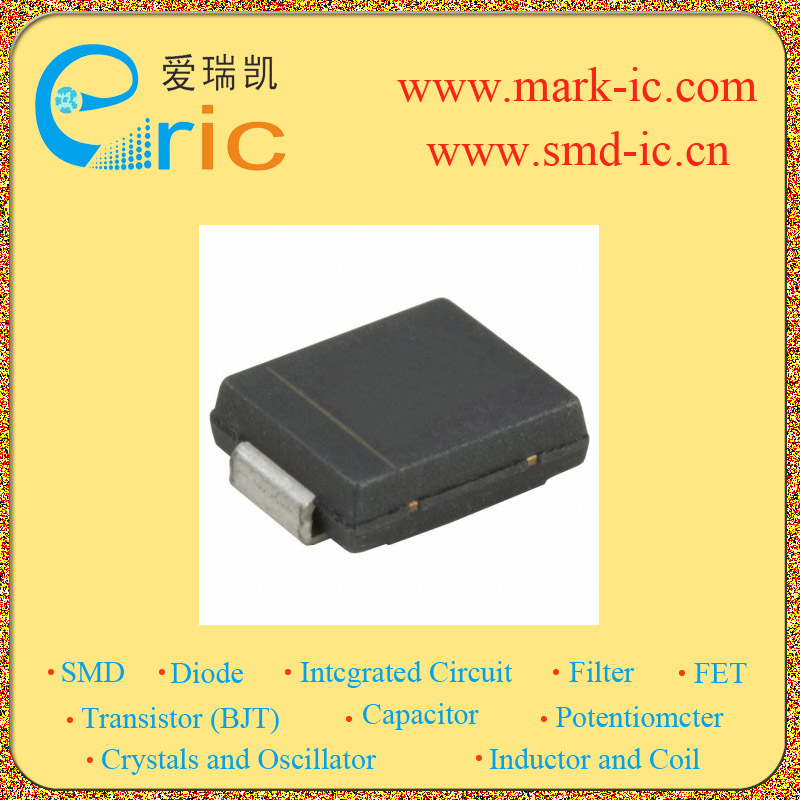

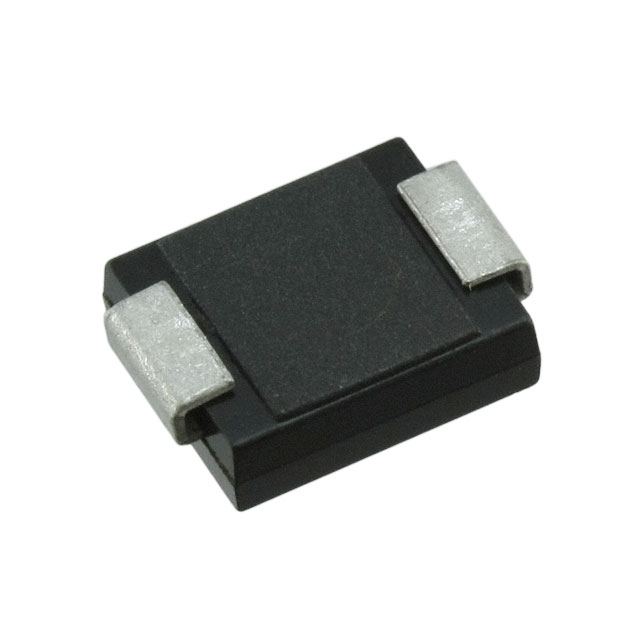

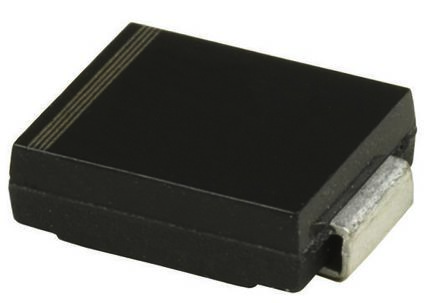

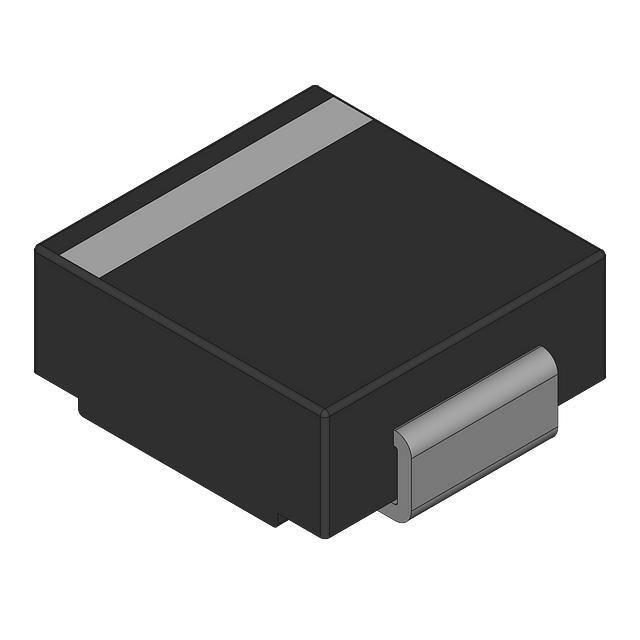

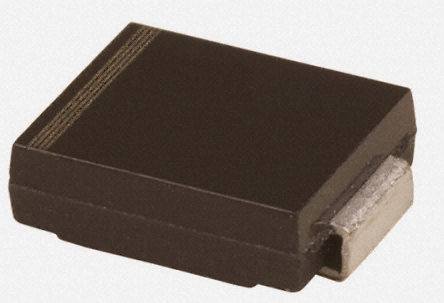

SMCJ9V0CA 瞬态抑制二极管TVS/ESD 90V 10.3A DO-214AB/SMC-9V 标记GDV

极性Polarization| 双向 Bidirectional \---|--- 反向关断电压/工作电压VRWMReverse Standoff Voltage| 90V 反向击穿电压VBRBreakdown Voltage| 105.5V 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation| 1500W 峰值脉冲电流IPPmPeak Forward Surge Current| 10.3A 额定耗散功率PdPower dissipation| Description & Applications| FEATURES •Transient Voltage Suppressors •Glass passivated junction. •1500 W Peak Pulse Power capability on 10/1000 µs waveform. •Excellent clamping capability. •Low incremental surge resistance. •Fast response time; typically less than 1.0 ps from 0 volts to BV for unidirectional and 5.0 ns for bidirectional. •Typical less than 1.0 µA above 10V. •UL certified, UL #E210467. 描述与应用| 特点 •瞬态电压抑制器 •玻璃钝化结。 •1500 W峰值脉冲功率10/1000微秒的能力波形。 •出色的钳位能力。 •低增量浪涌电阻。 •快速响应时间通常小于1.0 ps的从0伏BV双向单向和5.0 ns的。 •典型10V以上小于1.0μA。 •UL认证，UL E210467。
