4A 至 9A,STMicroelectronics### 二极管和整流器,STMicroelectronics
整流器,4A 至 9A,STMicroelectronics
得捷:

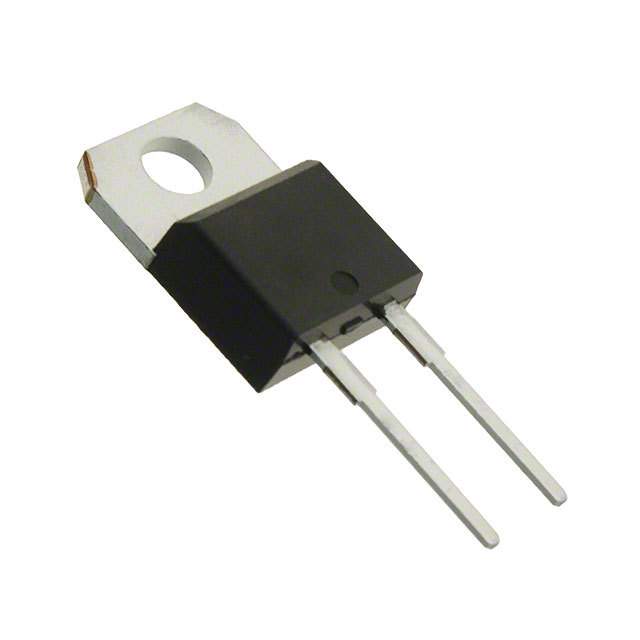

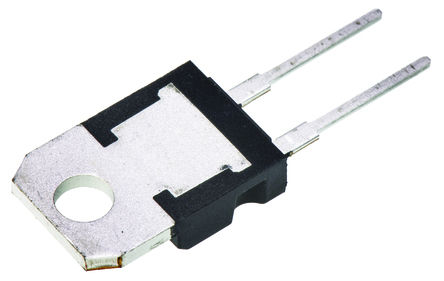

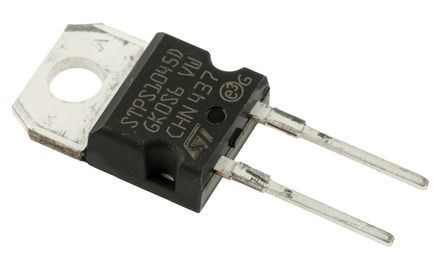

DIODE GP 600V 5A TO220AC INS
欧时:
### 整流器二极管,4A 至 9A,STMicroelectronics### 二极管和整流器,STMicroelectronics
贸泽:
Rectifiers 5.0 Amp 600 Volt
e络盟:
快速/超快二极管, 前后直排, 600 V, 14 A, 单, 3.6 V, 25 ns, 60 A
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode STTH506DTI rectifier from STMicroelectronics. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It is made in a single configuration. Its peak non-repetitive surge current is 60 A, while its maximum continuous forward current is 5 A. This rectifier has an operating temperature range of -65 °C to 150 °C.
安富利:
Diode Switching 600V 5A 2-Pin2+Tab TO-220AC Tube
Chip1Stop:
Diode Switching 600V 5A 2-Pin2+Tab TO-220AC Tube
Verical:
Rectifier Diode Switching 600V 5A 25ns 2-Pin2+Tab TO-220AC Tube
Win Source:
DIODE GEN PURP 600V 5A TO220AC
额定电压DC 600 V
额定电流 5.00 A
输出电流 ≤5.00 A
正向电压 3.6 V
极性 Standard
热阻 3 ℃/W
反向恢复时间 25 ns
正向电流 5 A
最大正向浪涌电流(Ifsm) 60 A
正向电压Max 3.6 V
正向电流Max 5 A
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 175℃ Max
安装方式 Through Hole
引脚数 2
封装 TO-220-2
长度 10.4 mm
宽度 4.6 mm
高度 15.9 mm
封装 TO-220-2
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STTH506DTI ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
DSEP15-06A IXYS Semiconductor | 功能相似 | STTH506DTI和DSEP15-06A的区别 |
FES16JT-E3/45 威世 | 功能相似 | STTH506DTI和FES16JT-E3/45的区别 |
FES8JT-E3/45 威世 | 功能相似 | STTH506DTI和FES8JT-E3/45的区别 |
