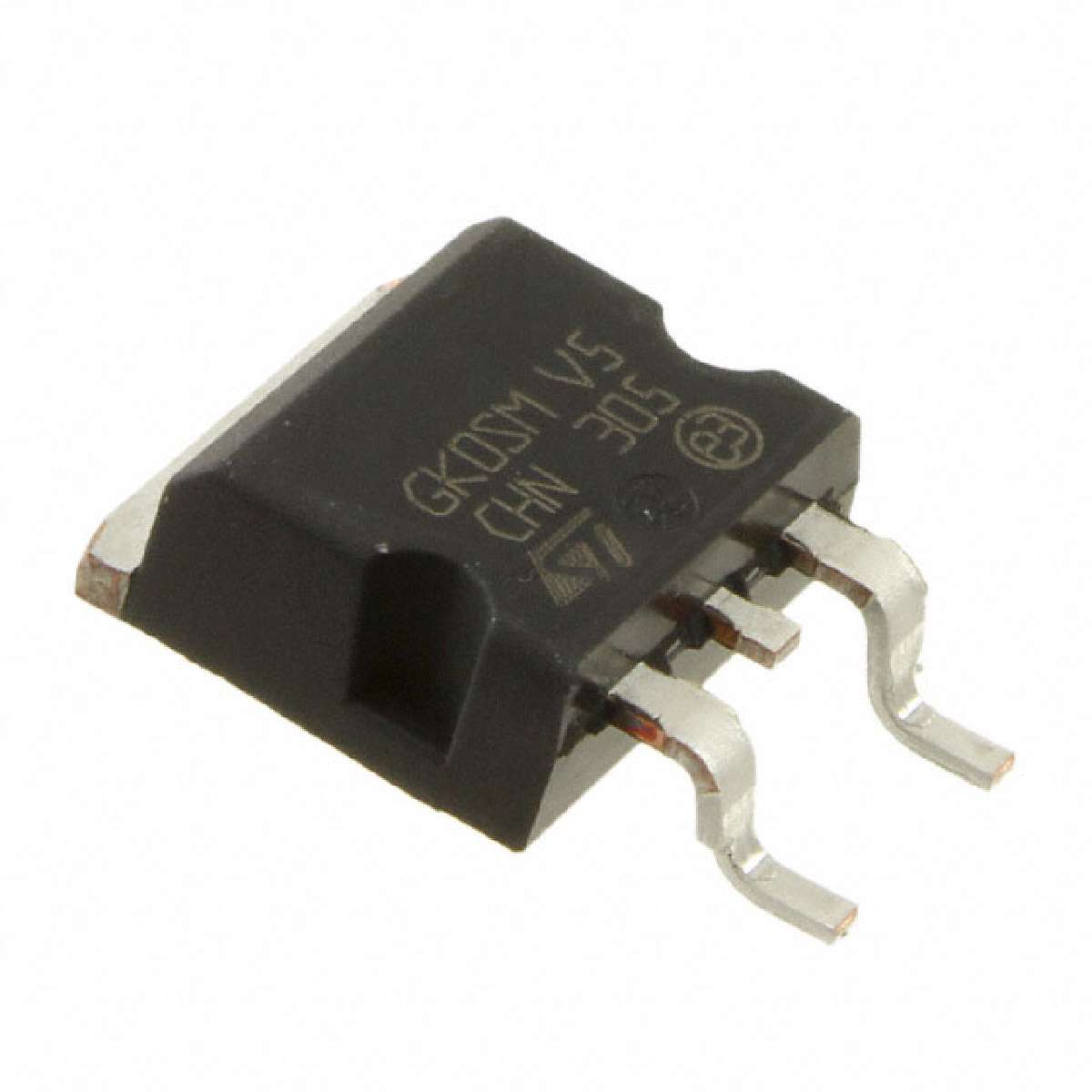

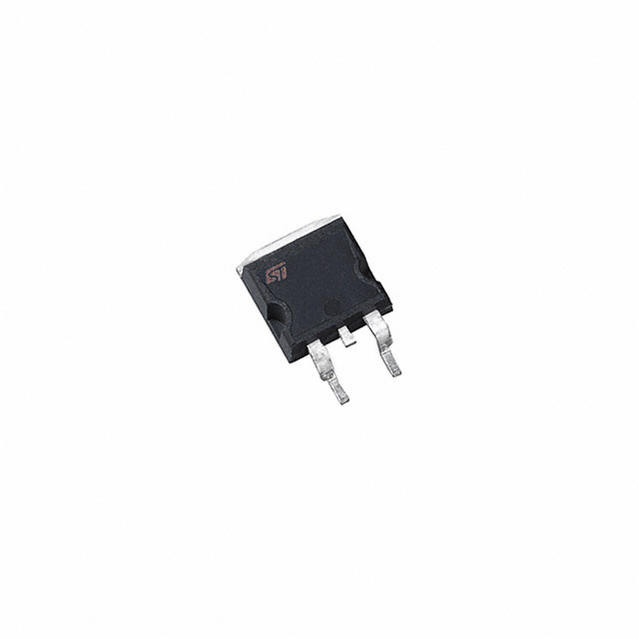

STTH30R03 系列 双通道 15 A 1.4 V 35 ns 次级 整流器 表面贴装-D2PAK
Diode Array 1 Pair Common Cathode Standard 300V 15A Surface Mount TO-263-3, D²Pak 2 Leads + Tab, TO-263AB
得捷:
DIODE ARRAY GP 300V 15A D2PAK
立创商城:
300V 15A 1.9V@15A
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode STTH30R03CG-TR rectifier from STMicroelectronics. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This rectifier has an operating temperature range of -65 °C to 175 °C. Its peak non-repetitive surge current is 120 A, while its maximum continuous forward current is 30 A. It is made in a dual common cathode configuration.
安富利:
Diode Switching 300V 30A 3-Pin2+Tab D2PAK T/R
富昌:
STTH30R03 Series Dual 15 A 1.4 V 35 ns Secondary Rectifier Surface Mount-D2PAK
Chip1Stop:
Diode Switching 300V 30A 3-Pin2+Tab D2PAK T/R
Verical:
Rectifier Diode Switching 300V 30A 35ns 3-Pin2+Tab D2PAK T/R
儒卓力:
**RECT 300V 30A 1.40V TO263 **
正向电压 1.9V @15A
反向恢复时间 35 ns
正向电流 30000 mA
最大正向浪涌电流(Ifsm) 120 A
正向电压Max 1.9V @15A
正向电流Max 30000 mA
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 175℃ Max
安装方式 Surface Mount
引脚数 3

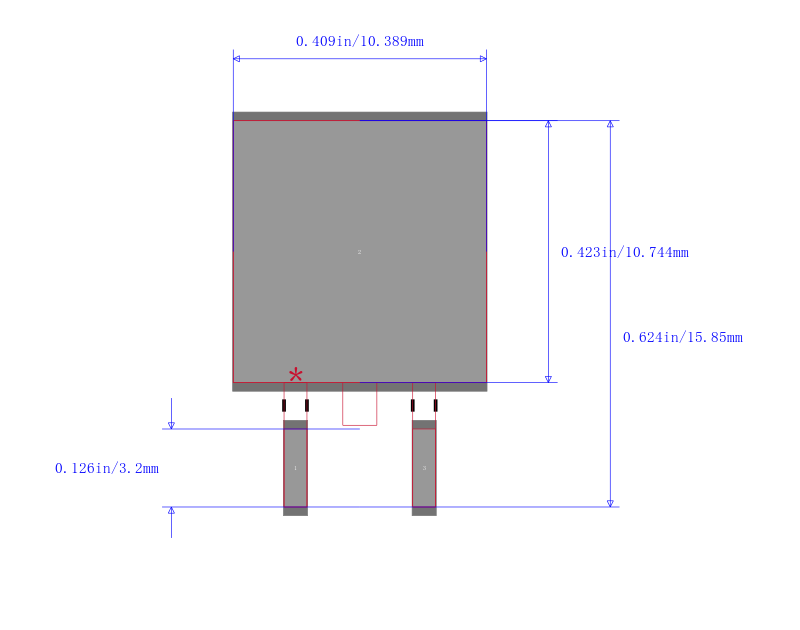

封装 TO-263-3
宽度 9.35 mm
封装 TO-263-3
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STTH30R03CG-TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STTH30R03CG 意法半导体 | 类似代替 | STTH30R03CG-TR和STTH30R03CG的区别 |
