SR151A220JAR

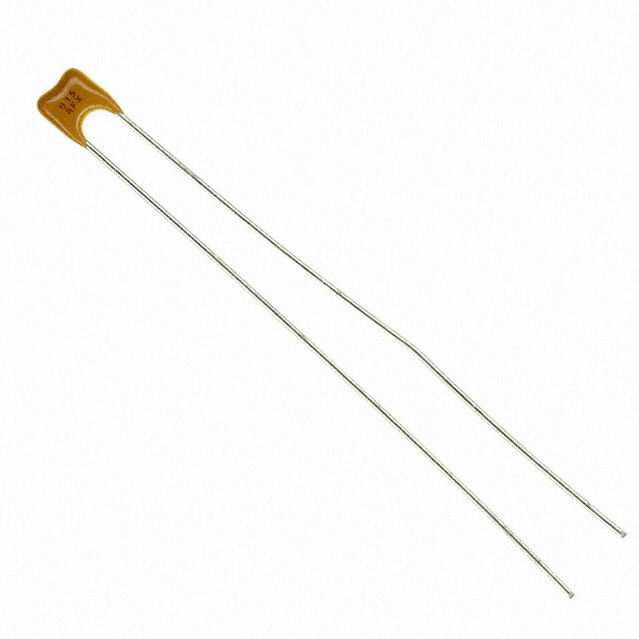

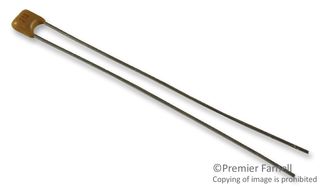

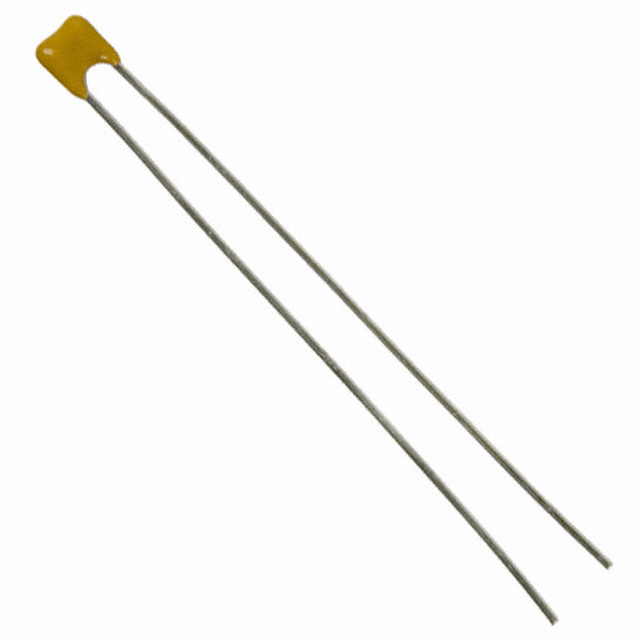

AVX  SR151A220JAR  多层陶瓷电容, SkyCap SR系列, 22 pF, ± 5%, C0G / NP0, 100 V, 径向引线

SkyCap SR系列是一款径向引线多层陶瓷器, C0G NP0介质材料. 电容值范围为1pF至0.1µF.

.

额定电压: 50VDC, 100VDC和200VDC

.

公差: ±0.25pF, ±0.5pF, ±1%, ±2%, ±5%和±10%

欧时:
Radial Capacitor SR15 100V COG 22pF 5%

e络盟:
多层陶瓷电容, 22 pF, 100 V, SkyCap SR系列, ± 5%, 径向引线, C0G / NP0

艾睿:
This SR151A220JAR multilayer ceramic capacitor from AVX is available with a variety of capacitance values, voltage ratings, package sizes, and other parameters. Users like its straight wire form. It can withstand a voltage of 100 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product comes packaged in bulk, so the parts will be stored loosely. Its capacitance value is 22pF. The SR151A220JAR MLCC capacitor has a radial termination style. It has a tolerance of 5%. This product is 3.81Max mm long, 3.81Max mm tall and 2.54Max mm deep.

安富利:
Cap Ceramic 22pF 100V C0G 5% Radial 2.54mm 125°C Bulk

Newark:
# AVX  SR151A220JAR  Multilayer Ceramic Capacitor, 22 pF, 100 V, SkyCap SR Series, ± 5%, Radial Leaded, C0G / NP0

儒卓力:
**KV 22pF 100V 5% RM2,5 NP0 **
