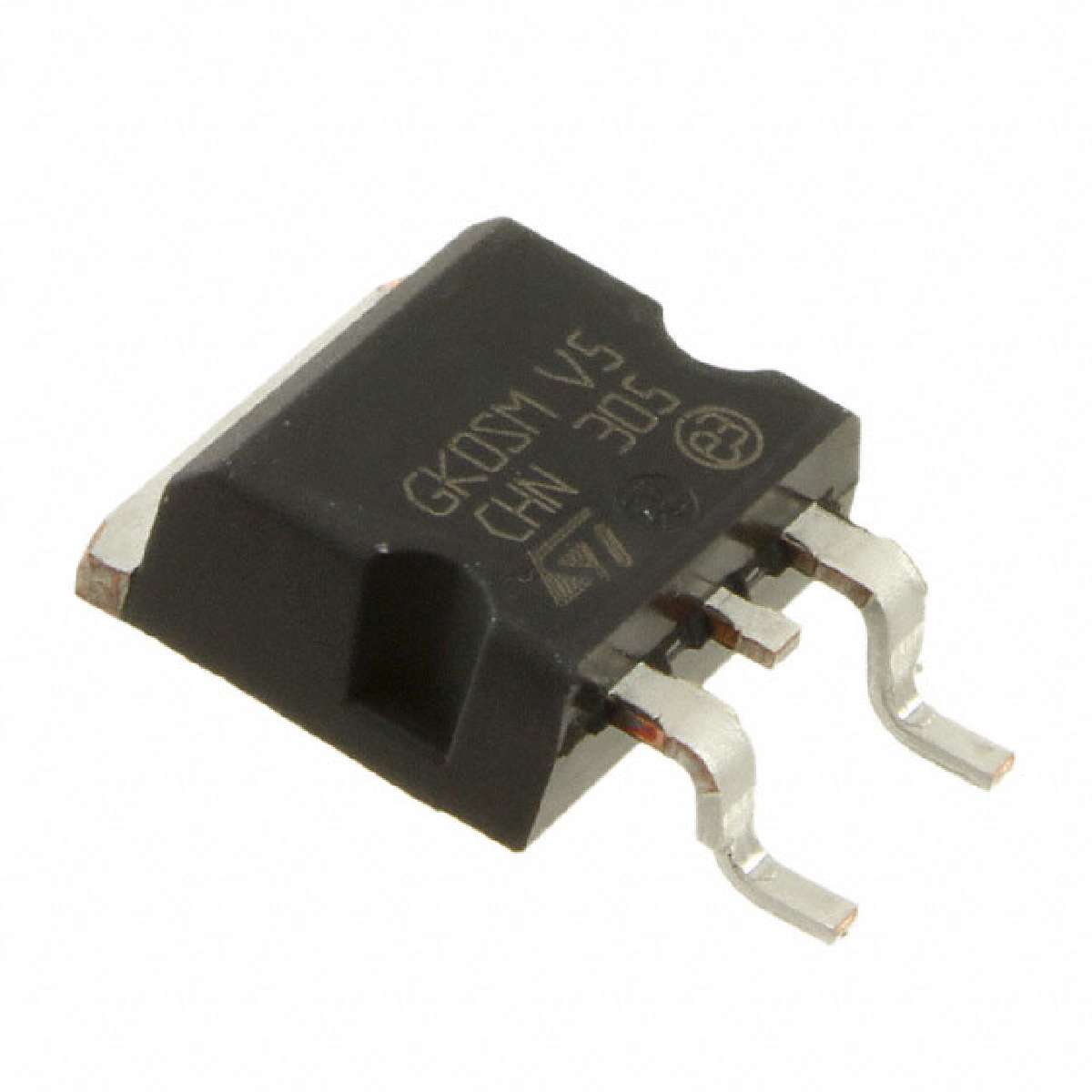

STMICROELECTRONICS STPS20SM100SG-TR 小信号肖特基二极管, 单, 100 V, 20 A, 900 mV, 350 A, 150 °C
肖特基 20A 表面贴装型 D²PAK
得捷:
DIODE SCHOTTKY 100V 20A D2PAK
贸泽:
肖特基二极管与整流器 20A 100V
e络盟:
小信号肖特基二极管, 单, 100 V, 20 A, 900 mV, 350 A, 150 °C
艾睿:
Switch from an AC voltage to a DC voltage using a Schottky diode STPS20SM100SG-TR rectifier from STMicroelectronics. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This rectifier has an operating temperature range of -65 °C to 150 °C. It is made in a single dual anode configuration. Its peak non-repetitive surge current is 350 A, while its maximum continuous forward current is 20 A.
Chip1Stop:
Diode Schottky 100V 20A 3-Pin2+Tab D2PAK T/R
Newark:
# STMICROELECTRONICS STPS20SM100SG-TR Rectifier Diode, Single, 100 V, 20 A, 900 mV, 350 A, 150 C
针脚数 3
正向电压 900mV @20A
正向电流 20 A
最大正向浪涌电流（Ifsm） 350 A
正向电压Max 900 mV
正向电流Max 20 A
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 150℃ Max
安装方式 Surface Mount
引脚数 3
封装 TO-263-3
长度 10.4 mm
宽度 9.35 mm
高度 4.6 mm
封装 TO-263-3
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
STPS20SM100SG-TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STPS30SM100SG-TR 意法半导体 | 类似代替 | STPS20SM100SG-TR和STPS30SM100SG-TR的区别 |
STPS40SM100CG-TR 意法半导体 | 类似代替 | STPS20SM100SG-TR和STPS40SM100CG-TR的区别 |
STPS40SM100CG 意法半导体 | 类似代替 | STPS20SM100SG-TR和STPS40SM100CG的区别 |
