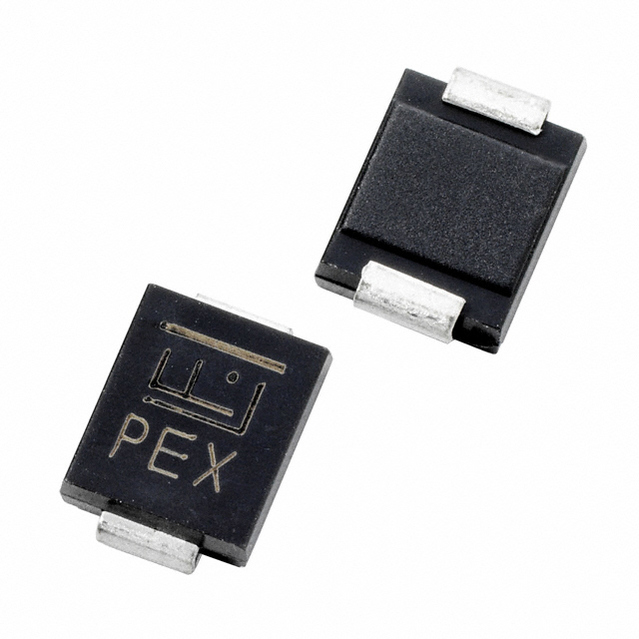

J 系列 16.7 V 3000 W 表面贴装 双向 TVS 二极管 - DO-214AB
Description
The SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
TVS devices are ideal for the protection of I/O Interfaces, VCCbus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic applications.
得捷:
TVS DIODE 15VWM 24.4VC DO214AB
立创商城:
SMDJ15CA
艾睿:
Diode TVS Single Bi-Dir 15V 3KW 2-Pin DO-214AB T/R
Chip1Stop:
Diode TVS Single Bi-Dir 15V 3KW 2-Pin DO-214AB T/R
TME:
Diode: transil; 3kW; 17.6V; 123A; bidirectional; ±5%; DO214AB
Verical:
Diode TVS Single Bi-Dir 15V 3KW 2-Pin SMC T/R
Newark:
# LITTELFUSE SMDJ15CA TVS Diode, SMDJ Series, Bidirectional, 15 V, 24.4 V, DO-214AB, 2 Pins
击穿电压 17.6 V
电路数 1
针脚数 2
耗散功率 3 kW
钳位电压 24.4 V
测试电流 1 mA
最大反向击穿电压 18.5 V
脉冲峰值功率 3000 W
最小反向击穿电压 16.7 V
击穿电压 16.7 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
长度 8.13 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active

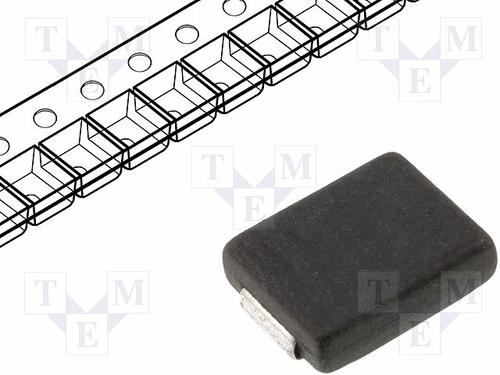

包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMDJ15CA Littelfuse 力特 | 当前型号 | 当前型号 |
SMDJ15CA-HRA 力特 | 类似代替 | SMDJ15CA和SMDJ15CA-HRA的区别 |
SMDJ15CA-HR 力特 | 类似代替 | SMDJ15CA和SMDJ15CA-HR的区别 |
SMDJ15CA-HRAT7 力特 | 类似代替 | SMDJ15CA和SMDJ15CA-HRAT7的区别 |
