SMBSAC5.0-TP

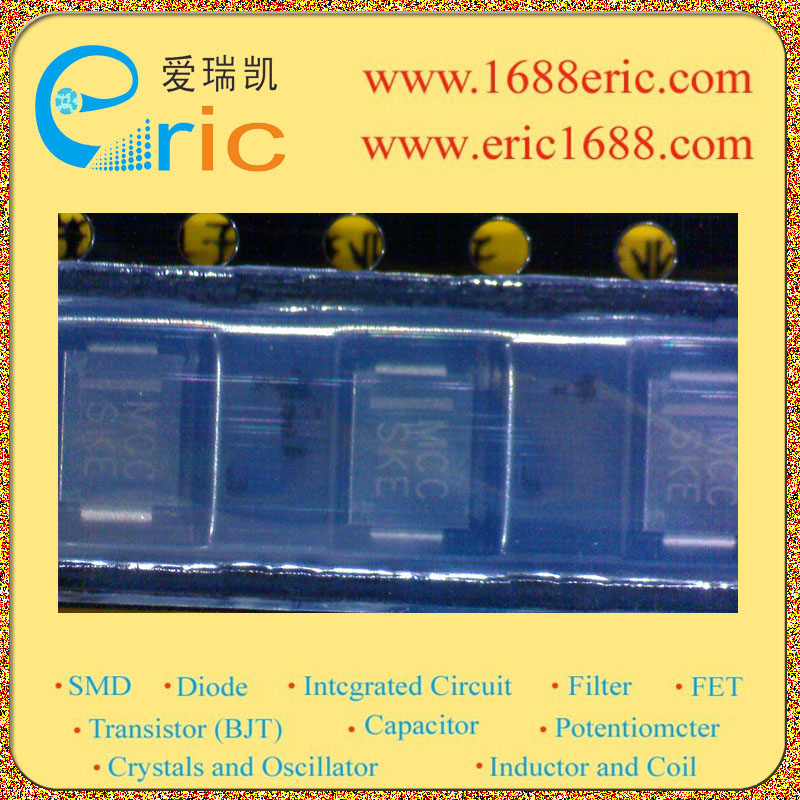

SMBSAC5.0-TP 瞬态抑制二极管TVS/ESD 5.0V 44.0A DO-214AA/SMB-5V 标记SKE

极性Polarization| 双向 Bidirectional \---|--- 反向关断电压/工作电压VRWMReverse Standoff Voltage| 5.0V 反向击穿电压VBRBreakdown Voltage| 7.6V 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation| 500W 峰值脉冲电流IPPmPeak Forward Surge Current| 44.0A 额定耗散功率PdPower dissipation| Description & Applications| FEATURES •Transient Voltage Suppressor 6.8 to 550 Volts 600 Watt •For surface mount applicationsin in order to optimize board space •Lead Free Finish/Rohs Compliant Note1 "P"Suffix designates Compliant. See ordering information •Fast response time: typical less than 1.0ps from 0 volts to VBR minimum • Low inductance •Excellent clamping capability •UL Recognized File # E331408 描述与应用| 特点 •瞬态电压抑制器6.8到550伏特600瓦•对于表面贴装applicationsin的为了优化电路板空间 •对无铅要求完成/ RoHS标准（注1）（“P”后缀指定标准。参见订购信息） •快速响应时间：典型小于1.0PS从0伏VBR最低 •低电感 •出色的钳位能力 •UL识别的文件＃E331408
