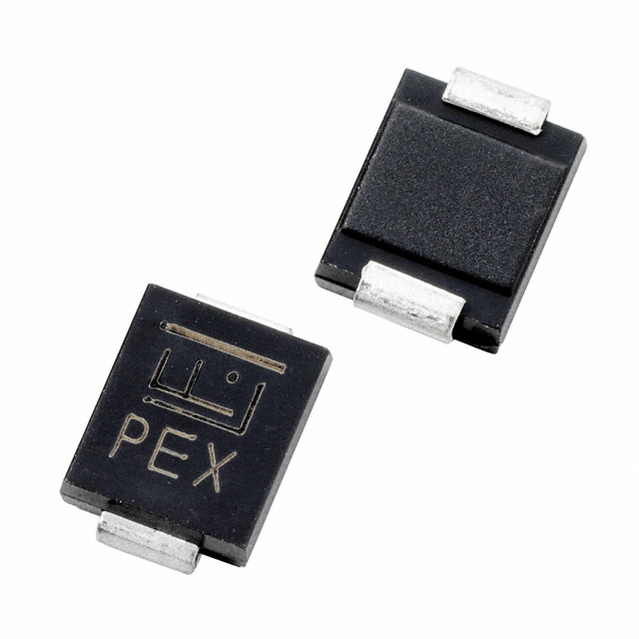

SMDJ26CA

SMDJ系列 26V 5000 W 表面贴装 双向 瞬态电压抑制二极管 DO-214AB

Description

The SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Applications

TVS devices are ideal for the protection of I/O Interfaces, VCCbus and other vulnerable circuits used in Telecom,

Computer, Industrial and Consumer electronic applications.

得捷:
TVS DIODE 26VWM 42.1VC DO214AB

立创商城:
Vrwm:26V 3kW

艾睿:
Get protected with this SMDJ26CA TVS diode manufactured from Littelfuse. Its maximum leakage current is 2 μA. Its test current is 1 mA. This device&s;s maximum clamping voltage is 42.1 V and minimum breakdown voltage is 28.9 V. Its peak pulse power dissipation is 3000 W. This TVS diode has an operating temperature range of -65 °C to 150 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components.

Chip1Stop:
Diode TVS Single Bi-Dir 26V 3KW 2-Pin DO-214AB T/R

TME:

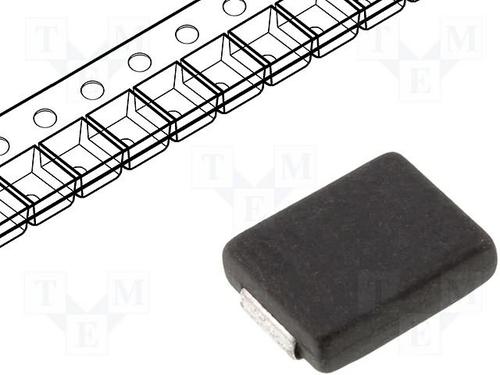

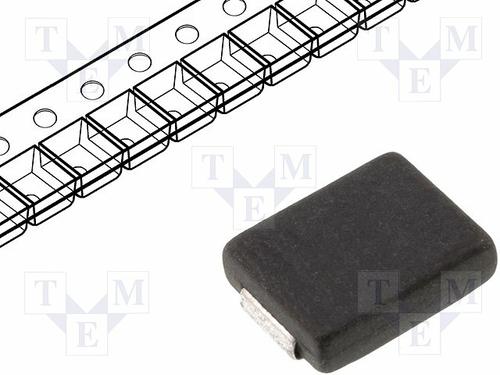

Diode: transil; 3kW; 30.4V; 71.3A; bidirectional; ±5%; DO214AB

Verical:
TVS Diode Single Bi-Dir 26V 3KW 2-Pin SMC T/R
