SMDJ系列 93.6V 3000 W 表面贴装 单向 瞬态电压抑制二极管 DO-214AB
93.6V 夹子 32.1A Ipp TVS - 表面贴装型 DO-214AB(SMCJ)
得捷:
TVS DIODE 58VWM 93.6VC DO214AB
立创商城:
Vrwm:58V 3kW
艾睿:
Do not risk expensive equipment and machinery from surges with this SMDJ58A TVS diode from Littelfuse. Its peak pulse power dissipation is 3000 W. Its maximum leakage current is 2 μA. Its test current is 1 mA. This device&s;s maximum clamping voltage is 93.6 V and minimum breakdown voltage is 64.4 V. This TVS diode has an operating temperature range of -65 °C to 150 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.
Chip1Stop:
Diode TVS Single Uni-Dir 58V 3KW 2-Pin DO-214AB T/R
TME:
Diode: transil; 3kW; 67.8V; 32.1A; unidirectional; ±5%; DO214AB
Verical:
Diode TVS Single Uni-Dir 58V 3KW 2-Pin DO-214AB T/R
击穿电压 67.8 V
电路数 1
针脚数 2
耗散功率 3000 W
钳位电压 93.6 V
测试电流 1 mA
最大反向击穿电压 71.2 V
脉冲峰值功率 3000 W
最小反向击穿电压 64.4 V
击穿电压 64.4 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2

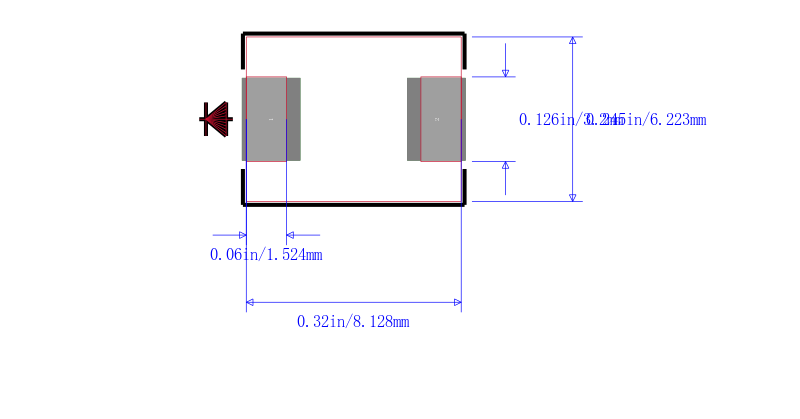

封装 DO-214AB
长度 8.13 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMDJ58A Littelfuse 力特 | 当前型号 | 当前型号 |
SMDJ58A-T7 力特 | 完全替代 | SMDJ58A和SMDJ58A-T7的区别 |
SMDJ60A-HR 力特 | 类似代替 | SMDJ58A和SMDJ60A-HR的区别 |
SMDJ60A-HRAT7 力特 | 类似代替 | SMDJ58A和SMDJ60A-HRAT7的区别 |
