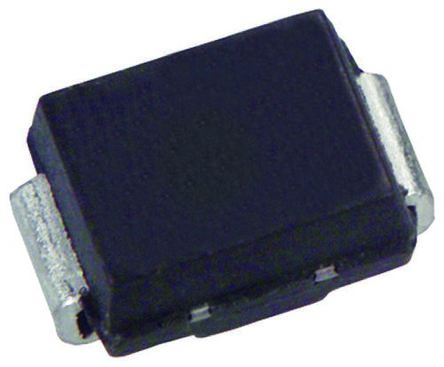

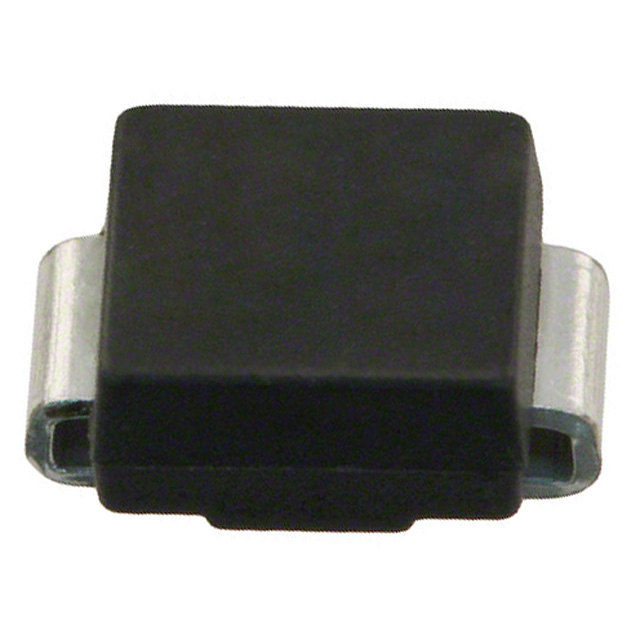

STMICROELECTRONICS SMP100LC-65 TVS二极管, Trisil SMP100LC系列, 双向, 55 V, DO-214AA, 2 引脚
Trisil™,用于电信设备保护,STMicroelectronics
双向过压保护
低电容
低泄漏电流
模拟和数字线路卡应用 xDSL, T1/E1, ISDN
欧时:
### Trisil™,用于电信设备保护,STMicroelectronics双向过压保护 低电容 低泄漏电流 模拟和数字线路卡应用 xDSL, T1/E1, ISDN ### 瞬态电压抑制器,STMicroelectronics
得捷:
THYRISTOR 65V 400A DO214AA
立创商城:
Vdrm=65V Vs=85V 150mA
贸泽:
浪涌抑制器 65V 50uA Bidirect
e络盟:
TVS二极管, Transil SMP100LC系列, 双向, 55 V, DO-214AA, 2 引脚
艾睿:
This SMP100LC-65 SCR thyristor from STMicroelectronics can be used to protect against surges with a faster reaction time. This device has a surge current rating of 24. This SCR thrysitor has an operating temperature range of -40 °C to 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its repetitive peak forward blocking voltage is 65 V, while its repetitive peak reverse voltage is 65 V.
安富利:
Thyristor SIDAC 65V 24A 2-Pin DO-214AA T/R
富昌:
SMP100LC Series 150 mA 65 V SMT Bi Directional Protecting Trisil - DO-214AA
Chip1Stop:
Thyristor SIDAC 65V 24A 2-Pin DO-214AA T/R
Verical:
Thyristor Surge Protection Devices 65V 24A 2-Pin DO-214AA T/R
Win Source:
TRISIL 100A 65V BIDIRECT SMB
额定电压DC 65.0 V
工作电压 55 V
电容 90 pF
击穿电压 65 V
针脚数 2
保持电流 150 mA
测试电流 5 µA
最大反向击穿电压 85 V
保持电流Max 150mA Min
工作温度Max 150 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA
长度 4.6 mm
宽度 5.6 mm
高度 2.45 mm
封装 DO-214AA
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMP100LC-65 ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
SMP100LC-270 意法半导体 | 类似代替 | SMP100LC-65和SMP100LC-270的区别 |
SMTPA270 意法半导体 | 类似代替 | SMP100LC-65和SMTPA270的区别 |
SMTPA220 意法半导体 | 类似代替 | SMP100LC-65和SMTPA220的区别 |
