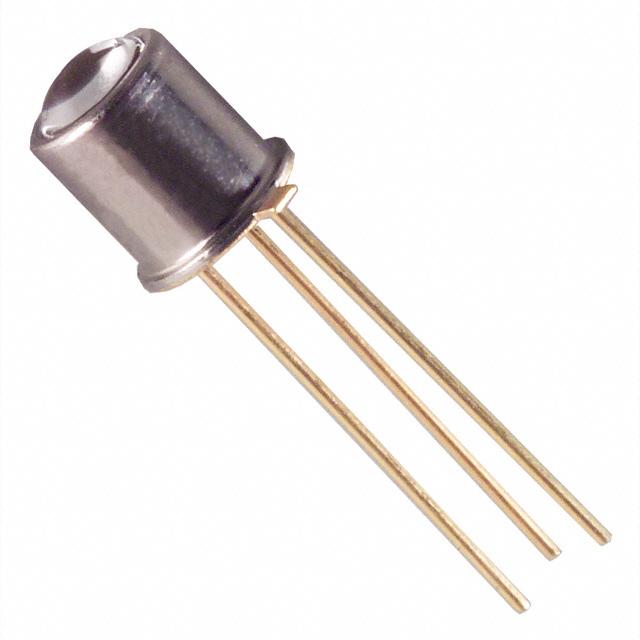

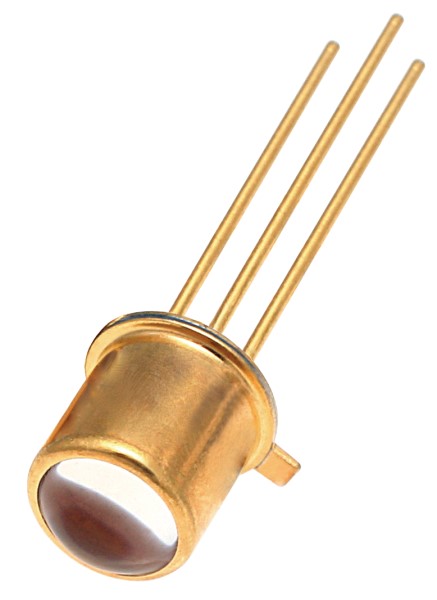

Phototransistor IR Chip Silicon 935nm 3Pin TO-18
880nm 顶视图 TO-206AA，TO-18-3 金属罐
得捷:
SENSOR PHOTO 880NM TOP TO206AA
艾睿:
Phototransistor IR Chip Silicon 935nm 3-Pin TO-18
Allied Electronics:
Phototransistor, Silicon, TO-18 Metal Can
Verical:
Phototransistor IR Chip Silicon 935nm 3-Pin TO-18
MASTER:
Phototransistor IR Chip Silicon 935nm 3-Pin TO-18
Powell:
Sensors, Infrared Sensors, Emitter
Online Components:
Phototransistor IR Chip Silicon 935nm 3-Pin TO-18
Electro Sonic:
Phototransistor IR Chip Silicon 935nm 3-Pin TO-18
Win Source:
SENSOR PHOTO 880NM TOP TO206AA / Phototransistors 880nm Top View TO-206AA, TO-18-3 Metal Can
波长 880 nm
视角 12°
峰值波长 935 nm
耗散功率 150 mW
上升时间 2000 ns
击穿电压集电极-发射极 30 V
额定功率Max 150 mW
下降时间 2000 ns
下降时间Max 2000 ns
上升时间Max 2000 ns
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 150 mW
安装方式 Through Hole
引脚数 3
封装 TO-18
宽度 5.38 mm
封装 TO-18
材质 Silicon
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 3A001.a.2.c
HTS代码 8541407080
