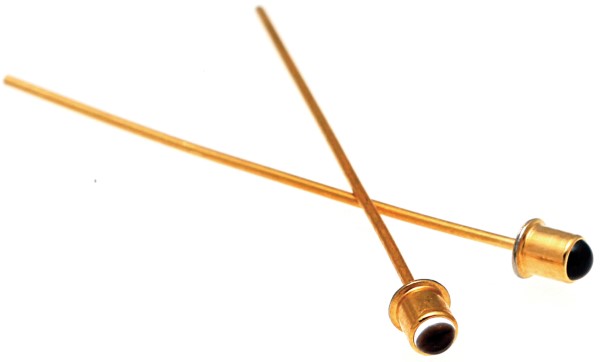

Phototransistor Chip Silicon 2Pin Metal Can
Phototransistor Chip Silicon 2-Pin Metal Can
Product Highlights
Compact, metal can coaxial package
24 ° nominal acceptance angle
Wide sensitivity ranges
Wide operating temperature range [-55 °C to 125 °C]
Mechanically and spectrally matched to SE1450 and SE1470 infrared emitting diodes
得捷:
SENSOR PHOTO 935NM TOP VIEW COAX
艾睿:
Phototransistor Chip Silicon 2-Pin Metal Can
Verical:
Phototransistor Chip Silicon 2-Pin Metal Can
儒卓力:
**PHOTOTRANSISTOR 24DEG, METALL **
MASTER:
Phototransistor Chip Silicon 2-Pin Metal Can
Powell:
Sensors, Infrared Sensors, Emitter
Online Components:
Phototransistor Chip Silicon 2-Pin Metal Can
Electro Sonic:
Phototransistor Chip Silicon 2-Pin Metal Can
上升/下降时间 15 ns
波长 935 nm
视角 24°
耗散功率 75 mW
上升时间 15000 ns
击穿电压集电极-发射极 30 V
击穿电压 50 V
额定功率Max 75 mW
下降时间 15 µs
下降时间Max 15000 ns
上升时间Max 15000 ns
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 75 mW
安装方式 Through Hole
引脚数 2
封装 TO-99
长度 2.41 mm
宽度 2.41 mm
高度 3.1 mm
封装 TO-99
材质 Silicon
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8541407080
