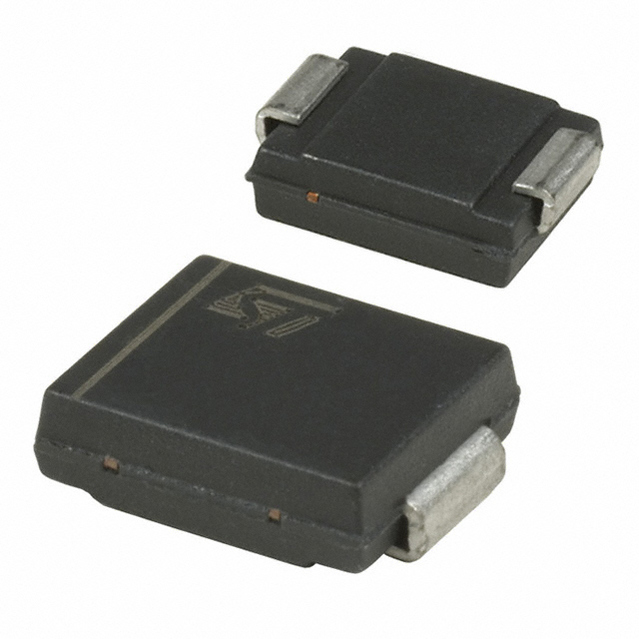

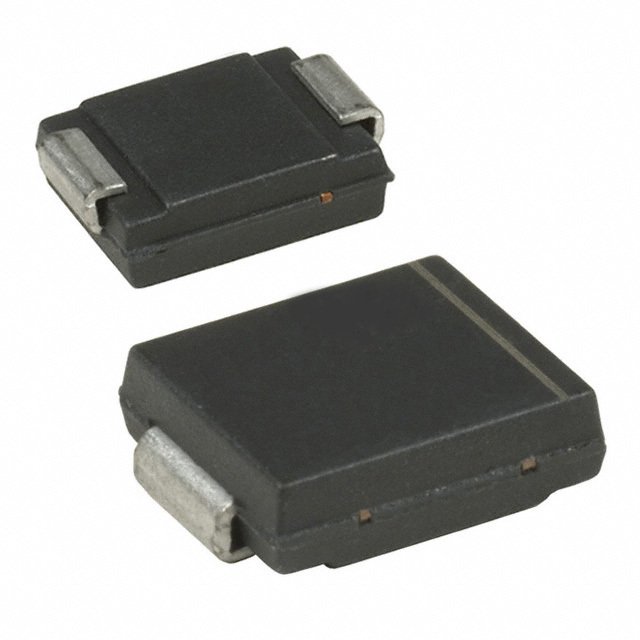

STMICROELECTRONICS SM15T22AY TVS二极管, AEC-Q358, Transil SM15T系列, 单向, 18.8 V, 39.3 V, DO-214AB, 2 引脚
Transil™ TVS SMT 单向 1500W,SM15T 系列,STMicroelectronics
### 瞬态电压抑制器,STMicroelectronics
欧时:
### Transil™ TVS SMT 单向 1500W,SM15T 系列,STMicroelectronics### 瞬态电压抑制器,STMicroelectronics
得捷:
TVS DIODE 18.8VWM 39.3VC SMC
立创商城:
单向 Vrwm:18.8V 1.5kW
贸泽:
ESD Suppressors / TVS Diodes 1500 W 10kW Transil 5.8V to 70V Uni
e络盟:
TVS二极管, SM15T系列, 单向, 18.8 V, 39.3 V, DO-214AB, 2 引脚
艾睿:
STMicroelectronics&s; SM15T22AY TVS diode is designed to protect electronic components and circuits from electrical overstress from overvoltage and electrostatic discharge. Its test current is 1 mA. Its peak pulse power dissipation is 1500 W. This device&s;s maximum clamping voltage is 39.3 V and minimum breakdown voltage is 20.9 V. Its maximum leakage current is 0.2 μA. This TVS diode has an operating temperature range of -40 °C to 150 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components.
安富利:
ESD Suppressor TVS 30KV 2-Pin SMC T/R
Chip1Stop:
Diode TVS Single Uni-Dir 18.8V 1.5KW Automotive 2-Pin SMC T/R
Newark:
# STMICROELECTRONICS SM15T22AY Transient Voltage Suppressor, TVS, Transil SM15T Series, Unidirectional, 18.8 V, DO-214AB, 2
电路数 1
针脚数 2
钳位电压 39.3 V
最大反向电压(Vrrm) 18.8V
测试电流 1 mA
最大反向击穿电压 23.1 V
脉冲峰值功率 1500 W
最小反向击穿电压 20.9 V
工作温度Max 150 ℃
工作温度Min -40 ℃
工作结温 -40℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
长度 7.15 mm
宽度 6.25 mm
高度 2.45 mm
封装 DO-214AB
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 工业, 车用, Power Management, 汽车级, Aerospace, Defence, Military, Industrial, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SM15T22AY ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
SM15T22A 意法半导体 | 功能相似 | SM15T22AY和SM15T22A的区别 |
