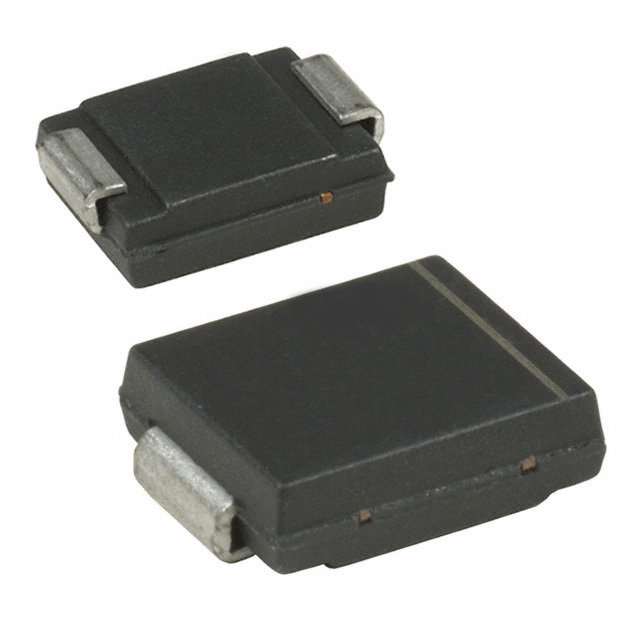

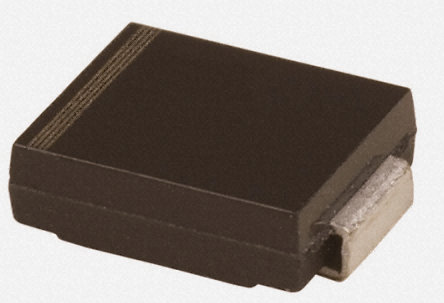

STMICROELECTRONICS SM15T39AY TVS二极管, AEC-Q370, Transil SM15T系列, 单向, 33.3 V, 69.7 V, DO-214AB, 2 引脚
Transil™ TVS SMT 单向 1500W,SM15T 系列,STMicroelectronics
### 瞬态电压抑制器,STMicroelectronics
欧时:
TVS 二极管 STMicroelectronics SM15T39AY 单向, 1500W, 69.7V, 2针 DO-214AB SMC封装
得捷:
TVS DIODE 33.3VWM 69.7VC SMC
立创商城:
单向 Vrwm:33.3V 1.5kW
e络盟:
TVS二极管, SM15T系列, 单向, 33.3 V, 69.7 V, DO-214AB, 2 引脚
艾睿:
STMicroelectronics&s; SM15T39AY TVS diode is designed to protect electronic components and circuits from electrical overstress from overvoltage and electrostatic discharge. This device&s;s maximum clamping voltage is 69.7 V and minimum breakdown voltage is 37.1 V. Its maximum leakage current is 0.2 μA. Its peak pulse power dissipation is 1500 W. Its test current is 1 mA. This TVS diode has a minimum operating temperature of -40 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery.
安富利:
ESD Suppressor TVS 30KV 2-Pin SMC T/R
Chip1Stop:
Diode TVS Single Uni-Dir 33.3V 1.5KW Automotive 2-Pin SMC T/R
Verical:
TVS Diode Single Uni-Dir 33.3V 1.5KW Automotive 2-Pin SMC T/R
Newark:
# STMICROELECTRONICS SM15T39AY Transient Voltage Suppressor, TVS, Transil SM15T Series, Unidirectional, 33.3 V, DO-214AB, 2
Win Source:
TVS DIODE 33.3VWM 69.7VC SMC / 69.7V Clamp 143A 8/20µs Ipp Tvs Diode Surface Mount SMC
电路数 1
针脚数 2
耗散功率 1.5 kW
钳位电压 69.7 V
最大反向电压(Vrrm) 33.3V
测试电流 1 mA
最大反向击穿电压 41 V
脉冲峰值功率 1500 W
最小反向击穿电压 37.1 V
击穿电压 37.1 V
工作温度Max 150 ℃
工作温度Min -40 ℃
工作结温 -40℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
长度 7.15 mm
宽度 6.25 mm
高度 2.45 mm
封装 DO-214AB
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, 汽车级, Aerospace, Defence, Military, 工业, Industrial, 车用, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SM15T39AY ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
SM15T39A 意法半导体 | 类似代替 | SM15T39AY和SM15T39A的区别 |
