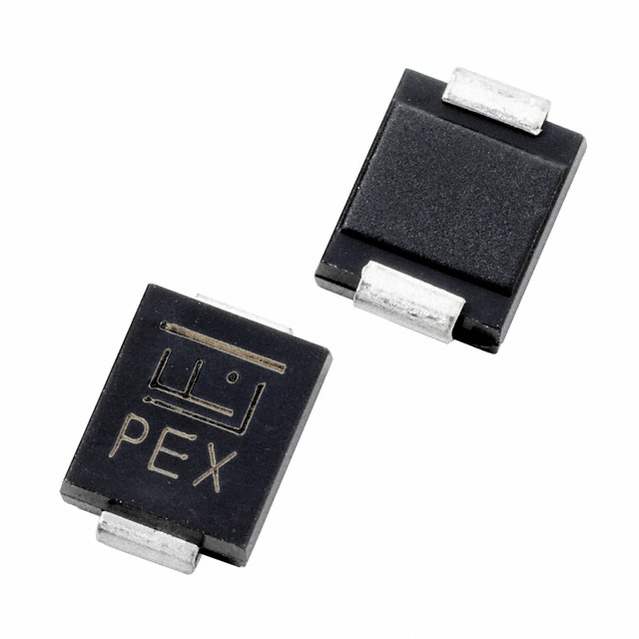

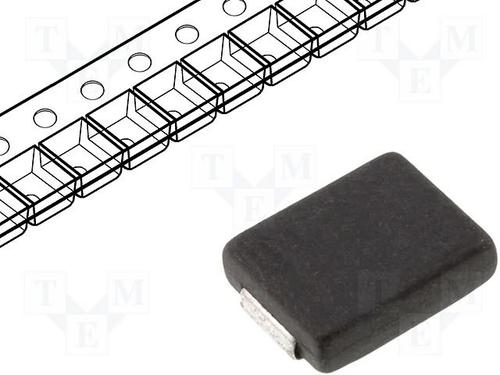

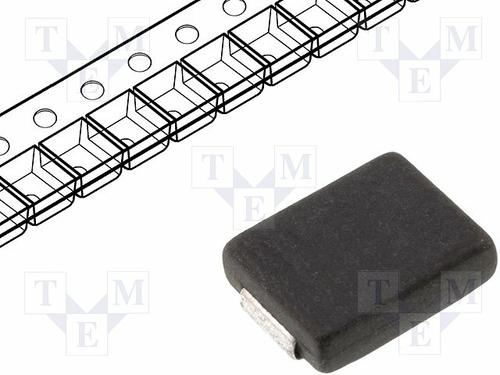

SMDJ18CA

瞬态电压抑制二极管 Transient Voltage Suppression Diodes

Description

The SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Applications

TVS devices are ideal for the protection of I/O Interfaces, VCCbus and other vulnerable circuits used in Telecom,

Computer, Industrial and Consumer electronic applications.

得捷:
TVS DIODE 18VWM 29.2VC DO214AB

立创商城:
Vrwm:18V 3kW

e络盟:
Product Range:SMDJ Series

艾睿:
This SMDJ18CA TVS diode developed by Littelfuse can help protect your expensive equipment and electronics. Its maximum leakage current is 2 μA. Its peak pulse power dissipation is 3000 W. This device&s;s maximum clamping voltage is 29.2 V and minimum breakdown voltage is 20 V. Its test current is 1 mA. This TVS diode has an operating temperature range of -65 °C to 150 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.

Chip1Stop:
Diode TVS Single Bi-Dir 18V 3KW 2-Pin SMC T/R

TME:
Diode: transil; 3kW; 21.05V; 102.7A; bidirectional; ±5%; DO214AB

Verical:
Diode TVS Single Bi-Dir 18V 3KW 2-Pin DO-214AB T/R

Newark:
# LITTELFUSE  SMDJ18CA  TVS Diode, SMDJ Series, Bidirectional, 18 V, 29.2 V, DO-214AB, 2 Pins

儒卓力:
**TVS-DIODE BI 3KW 21V SMC **
