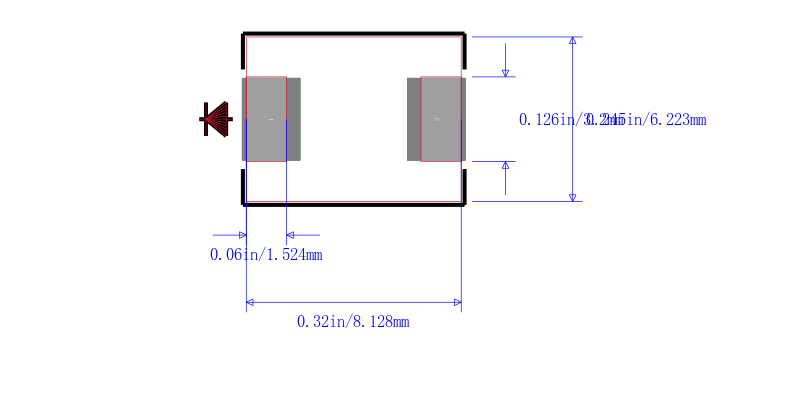

SMDJ45A

瞬态电压抑制二极管 Transient Voltage Suppression Diodes

Description

The SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Applications

TVS devices are ideal for the protection of I/O Interfaces, VCCbus and other vulnerable circuits used in Telecom,

Computer, Industrial and Consumer electronic applications.

立创商城:
Vrwm:45V 3kW

得捷:
TVS DIODE 45VWM 72.7VC DO214AB

艾睿:

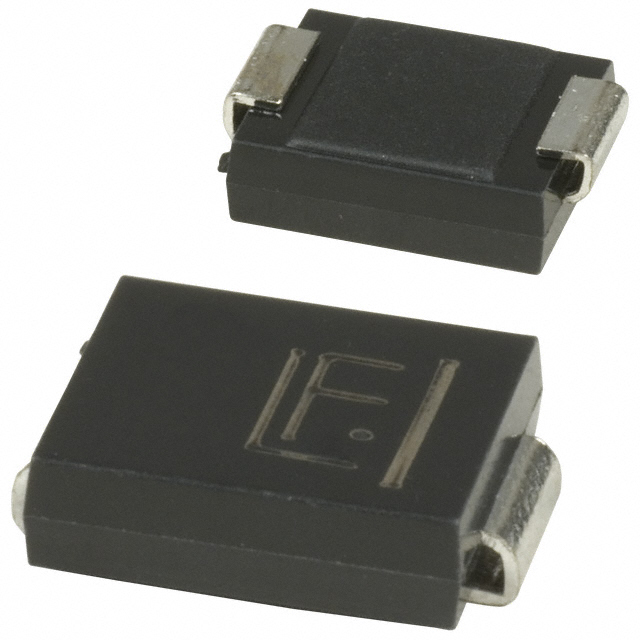

Protect your electronic equipment from sudden or momentary overvoltage conditions with this SMDJ45A TVS diode from Littelfuse. Its test current is 1 mA. This device&s;s maximum clamping voltage is 72.7 V and minimum breakdown voltage is 50 V. Its peak pulse power dissipation is 3000 W. Its maximum leakage current is 2 μA. This TVS diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment.

Chip1Stop:
Diode TVS Single Uni-Dir 45V 3KW 2-Pin DO-214AB T/R

TME:

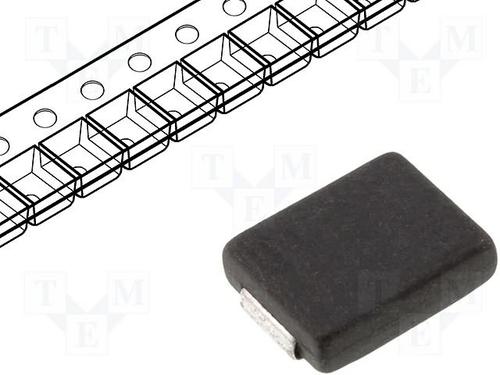

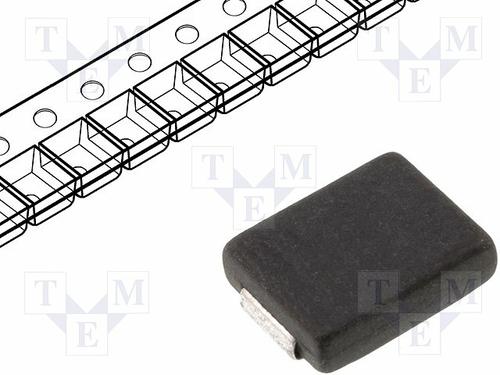

Diode: transil; 3kW; 52.65V; 41.3A; unidirectional; ±5%; DO214AB

Verical:
Diode TVS Single Uni-Dir 45V 3KW 2-Pin DO-214AB T/R
