瞬态电压抑制二极管 Transient Voltage Suppression Diodes
Description
The SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
TVS devices are ideal for the protection of I/O Interfaces, VCCbus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic applications.
立创商城:
Vrwm:6.5V 3kW
得捷:
TVS DIODE 6.5VWM 11.2VC DO214AB
艾睿:
Diode TVS Single Bi-Dir 6.5V 3KW 2-Pin DO-214AB T/R
Chip1Stop:
Diode TVS Single Bi-Dir 6.5V 3KW 2-Pin DO-214AB T/R
TME:
Diode: transil; 3kW; 7.6V; 267.9A; bidirectional; ±5%; DO214AB
工作电压 6.5 V
击穿电压 7.6 V
电路数 1
耗散功率 3 kW
钳位电压 11.2 V
测试电流 10 mA
脉冲峰值功率 3000 W
最小反向击穿电压 7.22 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2

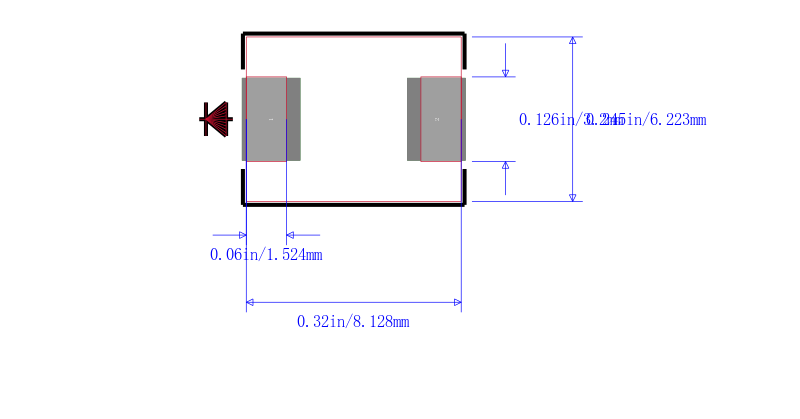

封装 DO-214AB
长度 8.13 mm
宽度 6.22 mm
高度 2.42 mm
封装 DO-214AB
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMDJ6.5CA Littelfuse 力特 | 当前型号 | 当前型号 |
SMDJ6.5CA-T7 力特 | 完全替代 | SMDJ6.5CA和SMDJ6.5CA-T7的区别 |
SMDJ6.5CA-HRAT7 力特 | 完全替代 | SMDJ6.5CA和SMDJ6.5CA-HRAT7的区别 |
SMDJ6.5CA-HRA 力特 | 完全替代 | SMDJ6.5CA和SMDJ6.5CA-HRA的区别 |
