瞬态电压抑制二极管 Transient Voltage Suppression Diodes
Description
The SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
TVS devices are ideal for the protection of I/O Interfaces, VCCbus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic applications.
得捷:
TVS DIODE 7VWM 12VC DO214AB
立创商城:
Vrwm:7V 3kW
艾睿:
Get protected with this SMDJ7.0CA TVS diode manufactured from Littelfuse. This device&s;s maximum clamping voltage is 12 V and minimum breakdown voltage is 7.78 V. Its peak pulse power dissipation is 3000 W. Its test current is 10 mA. Its maximum leakage current is 400 μA. This TVS diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.
Chip1Stop:
Diode TVS Single Bi-Dir 7V 3KW 2-Pin DO-214AB T/R
TME:
Diode: transil; 3kW; 8.19V; 250A; bidirectional; ±5%; DO214AB
击穿电压 8.19 V
电路数 1
耗散功率 3 kW
钳位电压 12 V
测试电流 10 mA
脉冲峰值功率 3000 W
最小反向击穿电压 7.78 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
长度 8.13 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active

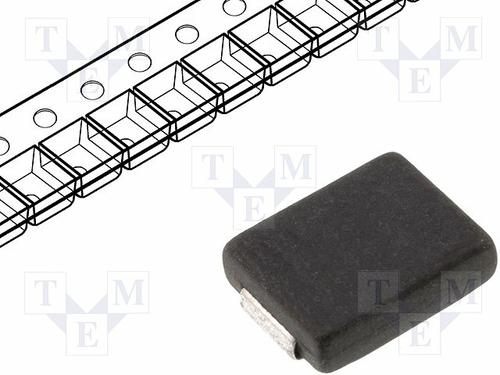

包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMDJ7.0CA Littelfuse 力特 | 当前型号 | 当前型号 |
SMDJ7.0CA-HRA 力特 | 完全替代 | SMDJ7.0CA和SMDJ7.0CA-HRA的区别 |
SMDJ7.0CA-HRAT7 力特 | 完全替代 | SMDJ7.0CA和SMDJ7.0CA-HRAT7的区别 |
SMDJ7.0CA-HR 力特 | 完全替代 | SMDJ7.0CA和SMDJ7.0CA-HR的区别 |
