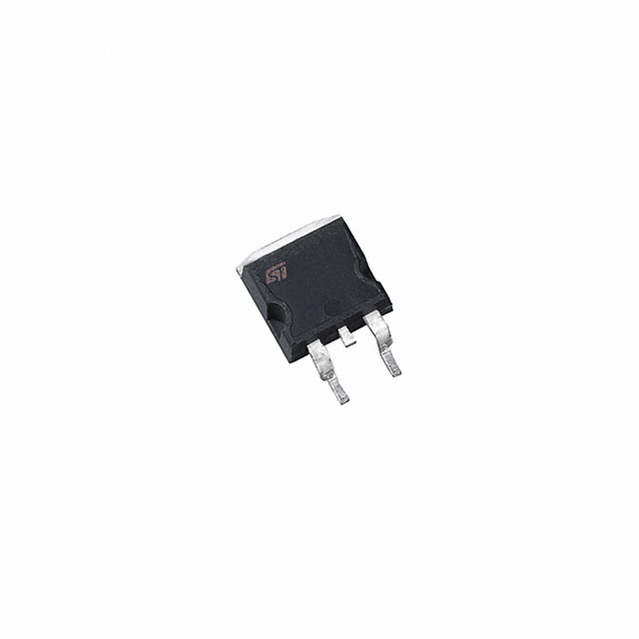

N沟道30V - 80A - D2PAK的STripFET ？功率MOSFET N-channel 30V - 80A - D2PAK STripFET? Power MOSFET
表面贴装型 N 通道 30 V 80A（Tc） 300W（Tc） D2PAK
得捷:
MOSFET N-CH 30V 80A D2PAK
艾睿:
If you need to either amplify or switch between signals in your design, then STMicroelectronics&s; STB230NH03L power MOSFET is for you. Its maximum power dissipation is 300000 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This MOSFET transistor has an operating temperature range of -55 °C to 175 °C. This N channel MOSFET transistor operates in enhancement mode.
Win Source:
MOSFET N-CH 30V 80A D2PAK
耗散功率 300W Tc
漏源极电压Vds 30 V
上升时间 322 ns
输入电容Ciss 4700pF @10VVds
额定功率Max 300 W
下降时间 102 ns
工作温度Max 175 ℃
工作温度Min -55 ℃
耗散功率Max 300W Tc
安装方式 Surface Mount
引脚数 3
封装 TO-263-3
封装 TO-263-3
材质 Silicon
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
