40A 至 240A,STMicroelectronics### 二极管和整流器,STMicroelectronics
肖特基势垒,40A 至 240A,STMicroelectronics
得捷:
DIODE ARRAY SCHOTTKY 170V TO247
立创商城:
STPS61170CW
欧时:

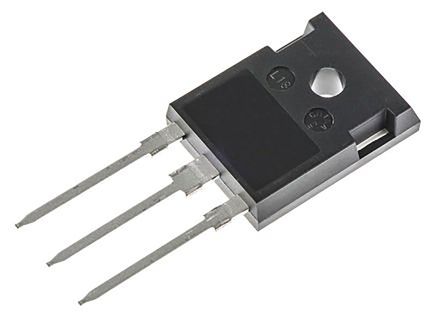

STMicroelectronics 二极管 STPS61170CW 肖特基, Io=60A, Vrev=170V, 3引脚 TO-247封装
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode STPS61170CW rectifier from STMicroelectronics. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It is made in a dual common cathode configuration. Its peak non-repetitive surge current is 500 A, while its maximum continuous forward current is 60 A. This rectifier has an operating temperature range of -65 °C to 175 °C.
安富利:
Diode Schottky 170V 60A 3-Pin3+Tab TO-247 Tube
富昌:
TO 247
Verical:
Rectifier Diode Schottky 170V 60A 3-Pin3+Tab TO-247 Tube
Newark:
# STMICROELECTRONICS STPS61170CW Schottky Rectifier, 170 V, 60 A, Dual Common Cathode, TO-247, 3 Pins, 940 mV
Win Source:
DIODE ARRAY SCHOTTKY 170V TO247
额定电压DC 170 V
额定电流 60.0 A
正向电压 840mV @30A
正向电流 60 A
最大正向浪涌电流(Ifsm) 270 A
正向电压Max 940 mV
正向电流Max 60 A
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 175℃ Max
安装方式 Through Hole
引脚数 3
封装 TO-247-3
长度 15.75 mm
宽度 5.15 mm
高度 20.15 mm
封装 TO-247-3
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STPS61170CW ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STPS60L30CW 意法半导体 | 类似代替 | STPS61170CW和STPS60L30CW的区别 |
STPS60L45CW 意法半导体 | 类似代替 | STPS61170CW和STPS60L45CW的区别 |
STPS61150CW 意法半导体 | 类似代替 | STPS61170CW和STPS61150CW的区别 |
