SMLJ瞬态电压抑制二极管系列 SMLJ Transient Voltage Suppressor Diode Series

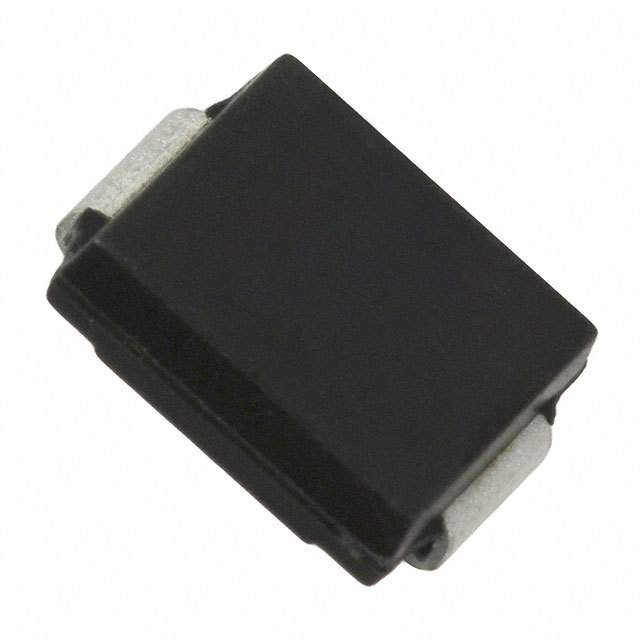

96.8V Clamp 31A Ipp Tvs Diode Surface Mount SMC DO-214AB
得捷:
TVS DIODE 60VWM 96.8VC SMC
立创商城:
双向 Vrwm:60V 3kW
贸泽:
ESD 抑制器/TVS 二极管 60volts 5uA 31 Amps Bi-Dir
艾睿:
Surges can be a costly problem, avoid the pain and suffering by implementing this SMLJ60CA TVS diode from Bourns. Its maximum leakage current is 5 μA. Its test current is 1 mA. This device&s;s maximum clamping voltage is 96.8 V and minimum breakdown voltage is 66.7 V. Its peak pulse power dissipation is 3000Min W. This TVS diode has an operating temperature range of -55 °C to 150 °C.
安富利:
Diode TVS Single Bi-Dir 60V 3KW 2-Pin DO-214AB
Verical:
Diode TVS Single Bi-Dir 60V 3KW 2-Pin SMC
Newark:
# BOURNS SMLJ60CA TVS Diode, SMLJ Series, Bidirectional, 60 V, 96.8 V, DO-214AB, 2 Pins
Electro Sonic:
Diode TVS Single Bi-Dir 60V 3KW 2-Pin SMC
工作电压 60 V
击穿电压 66.7 V
钳位电压 96.8 V
最大反向电压(Vrrm) 60V
测试电流 1 mA
最大反向击穿电压 73.7 V
脉冲峰值功率 3000 W
最小反向击穿电压 66.7 V
击穿电压 66.7 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2

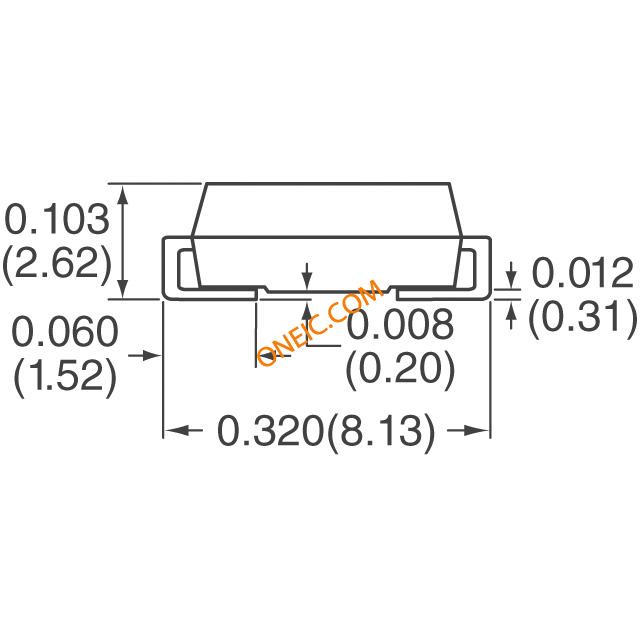

封装 DO-214AB-2
封装 DO-214AB-2
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMLJ60CA Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
SMLJ60CA-TP 美微科 | 功能相似 | SMLJ60CA和SMLJ60CA-TP的区别 |
SMLJ60CA-TP-HF 美微科 | 功能相似 | SMLJ60CA和SMLJ60CA-TP-HF的区别 |
SMLJ60C-TP 美微科 | 功能相似 | SMLJ60CA和SMLJ60C-TP的区别 |
