SMLJ90A

SMLJ瞬态电压抑制二极管系列 SMLJ Transient Voltage Suppressor Diode Series

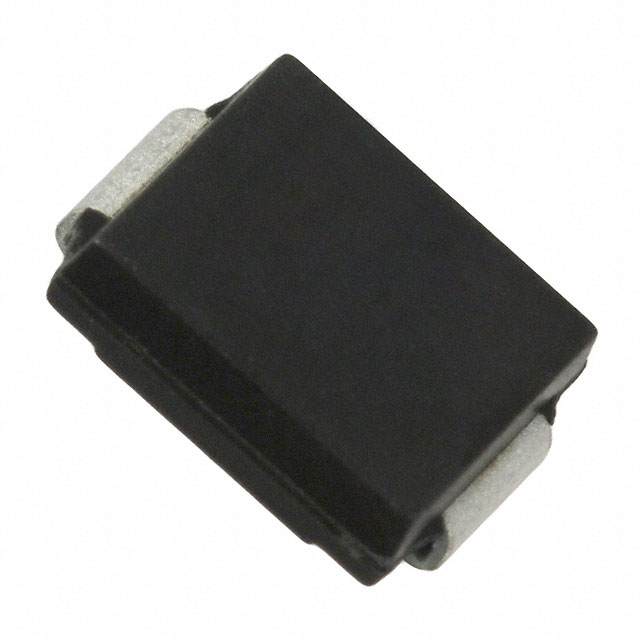

146V Clamp 20.6A Ipp Tvs Diode Surface Mount SMC DO-214AB

立创商城:
Vrwm:90V 3kW

得捷:
TVS DIODE 90VWM 146VC SMC

艾睿:
Implement surge protection with this SMLJ90A TVS diode from Bourns. Its test current is 1 mA. This device&s;s maximum clamping voltage is 146 V and minimum breakdown voltage is 100 V. Its maximum leakage current is 5 μA. Its peak pulse power dissipation is 3000Min W. This TVS diode has an operating temperature range of -55 °C to 150 °C.

安富利:
Diode TVS Single Uni-Dir 90V 3KW 2-Pin DO-214AB

Chip1Stop:
Diode TVS Single Uni-Dir 90V 3KW 2-Pin DO-214AB

Newark:
# BOURNS  SMLJ90A  TVS Diode, SMLJ Series, Unidirectional, 90 V, 146 V, DO-214AB, 2 Pins

Electro Sonic:
Diode TVS Single Uni-Dir 90V 3KW 2-Pin SMC
