300V,42A,N沟道MOSFET

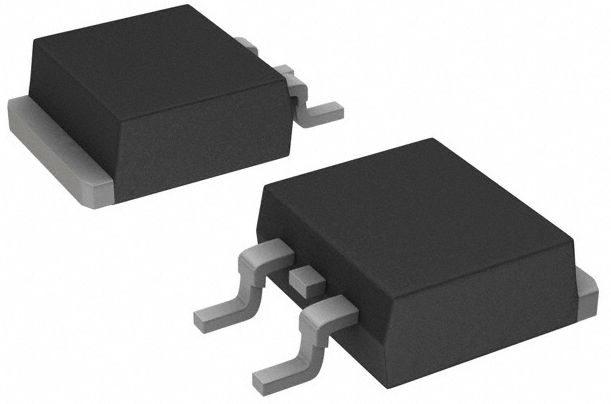

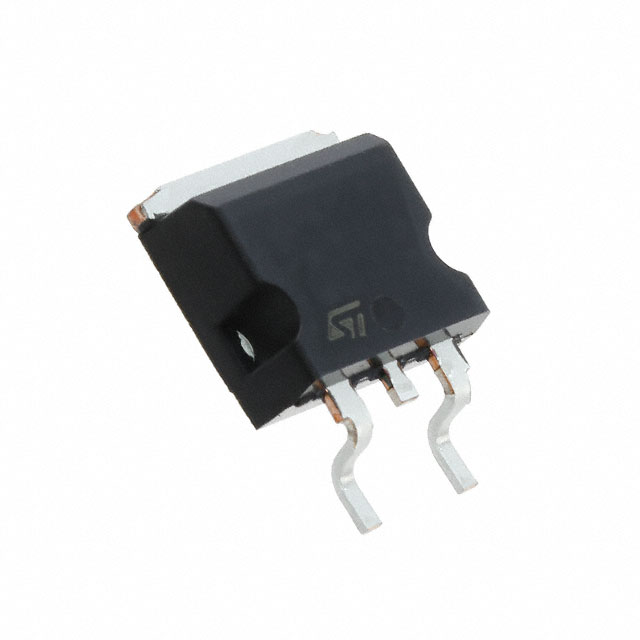

表面贴装型 N 通道 42A（Tc） 300W（Tc） D2PAK
得捷:
MOSFET N-CH 300V 42A D2PAK
立创商城:
N沟道300V 42A
贸泽:
MOSFET N-channel 300 V, 0.063 Ohm typ., 42 A STripFETTM II Power MOSFET in a D2PAK package
艾睿:
Create an effective common drain amplifier using this STB46NF30 power MOSFET from STMicroelectronics. Its maximum power dissipation is 300000 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 175 °C. This N channel MOSFET transistor operates in enhancement mode. This device is made with stripfet technology.
富昌:
Single N-Channel 300 V 0.075 Ohm 90 nC 300 W Silicon SMT Mosfet - TO-263-3
力源芯城:
300V,42A,N沟道MOSFET
通道数 1
针脚数 3
漏源极电阻 63 mΩ
耗散功率 300 W
阈值电压 2 V
输入电容 3200 pF
漏源极电压Vds 300 V
漏源击穿电压 300 V
上升时间 38 ns
输入电容Ciss 3200pF @25VVds
下降时间 46 ns
工作温度Max 175 ℃
工作温度Min 55 ℃
耗散功率Max 300000 mW
安装方式 Surface Mount
引脚数 3
封装 TO-263-3
长度 10.4 mm
封装 TO-263-3
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
