ESD 抑制器/TVS 二极管 48.4V 3000W 62A

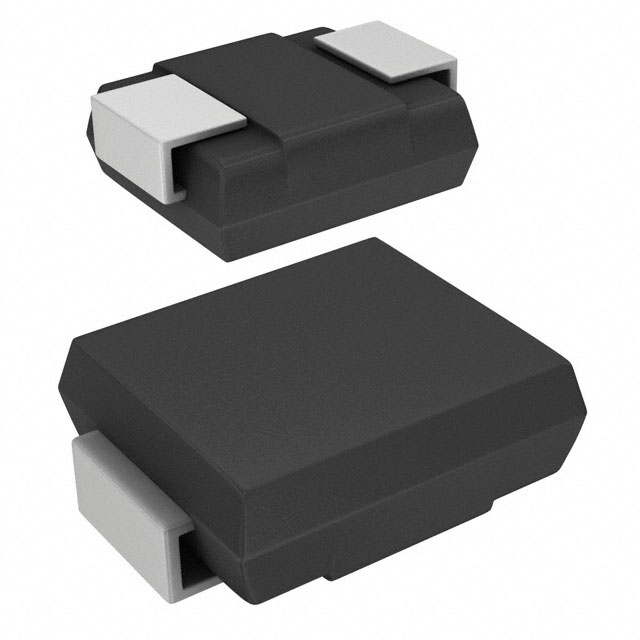

48.4V Clamp 62A Ipp Tvs Diode Surface Mount DO-214AB SMC
立创商城:
单向 Vrwm:30V 3kW
得捷:
TVS DIODE 30VWM 48.4VC DO214AB
贸泽:
ESD 抑制器/TVS 二极管 48.4V 3000W 62A
艾睿:
Save yourself hassle by equipping your device with Micro Commercial Components&s; SMLJ30A-TP TVS diode which will react to sudden or momentary overvoltage conditions. Its test current is 1 mA. This device&s;s maximum clamping voltage is 48.4 V and minimum breakdown voltage is 33.3 V. Its peak pulse power dissipation is 3000Min W. Its maximum leakage current is 5 μA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components.
Chip1Stop:
Diode TVS Single Uni-Dir 30V 3KW 2-Pin SMC T/R
击穿电压 36.8 V
电路数 1
钳位电压 48.4 V
测试电流 1 mA
脉冲峰值功率 3000 W
最小反向击穿电压 33.3 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB-2
长度 7.11 mm
宽度 8.13 mm
高度 2.62 mm
封装 DO-214AB-2
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMLJ30A-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
3.0SMCJ30A-13 美台 | 功能相似 | SMLJ30A-TP和3.0SMCJ30A-13的区别 |
3.0SMCJ30A-F World Products | 功能相似 | SMLJ30A-TP和3.0SMCJ30A-F的区别 |
3.0SMCJ30 美台 | 功能相似 | SMLJ30A-TP和3.0SMCJ30的区别 |
