单向 17V 3000W

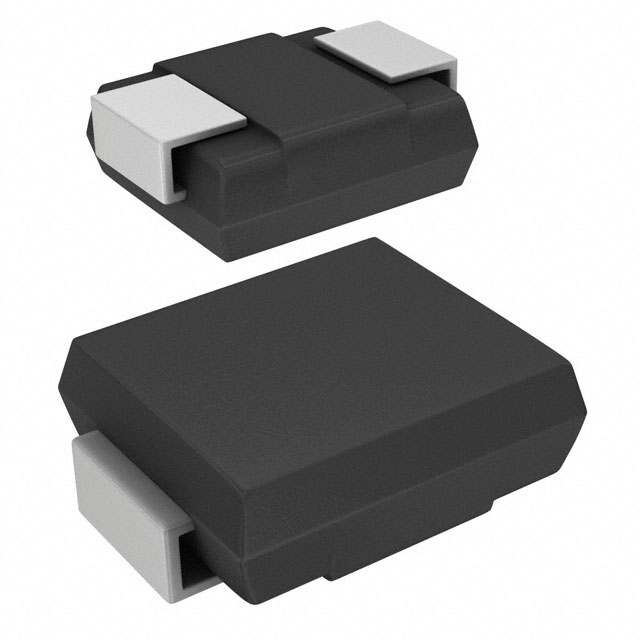

27.6V Clamp 106.6A Ipp Tvs Diode Surface Mount DO-214AB SMC
得捷:
TVS DIODE 17VWM 27.6VC DO214AB
立创商城:
单向 Vrwm:17V 3kW
贸泽:
ESD Suppressors / TVS Diodes 27.6V 3000W 106.6A
艾睿:
Surges can be a costly problem, avoid the pain and suffering by implementing this SMLJ17A-TP TVS diode from Micro Commercial Components. Its peak pulse power dissipation is 3000Min W. Its maximum leakage current is 5 μA. Its test current is 1 mA. This device&s;s maximum clamping voltage is 27.6 V and minimum breakdown voltage is 18.9 V. This TVS diode has an operating temperature range of -55 °C to 175 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment.
Chip1Stop:
Diode TVS Single Uni-Dir 17V 3KW 2-Pin SMC T/R
Verical:
Diode TVS Single Uni-Dir 17V 3KW 2-Pin SMC T/R
击穿电压 20.9 V
电路数 1
耗散功率 3 kW
钳位电压 27.6 V
测试电流 1 mA
脉冲峰值功率 3000 W
最小反向击穿电压 18.9 V
击穿电压 18.9 V
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 175℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
长度 7.11 mm
宽度 8.13 mm
高度 2.62 mm
封装 DO-214AB
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMLJ17A-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SMLJ17-TP 美微科 | 类似代替 | SMLJ17A-TP和SMLJ17-TP的区别 |
SMCJ17A 力特 | 功能相似 | SMLJ17A-TP和SMCJ17A的区别 |
