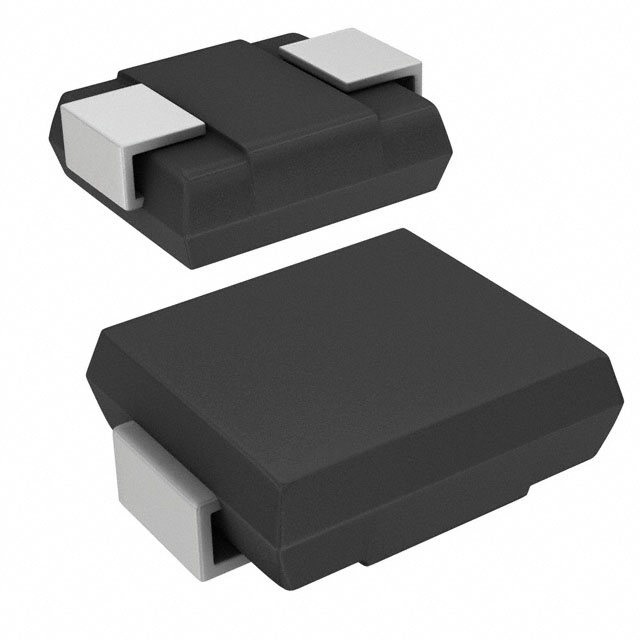

SMLJ33A-TP

单向 33V 3000W

53.3V 夹子 56.2A Ipp TVS - 表面贴装型 DO-214AB（SMC）

得捷:
TVS DIODE 33VWM 53.3VC DO214AB

立创商城:
单向 Vrwm:33V 3kW

艾睿:
Implement surge protection with this SMLJ33A-TP TVS diode from Micro Commercial Components. Its test current is 1 mA. This device&s;s maximum clamping voltage is 53.3 V and minimum breakdown voltage is 36.7 V. Its peak pulse power dissipation is 3000Min W. Its maximum leakage current is 5 μA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively.

Chip1Stop:
Diode TVS Single Uni-Dir 33V 3KW 2-Pin SMC T/R

Verical:
Diode TVS Single Uni-Dir 33V 3KW 2-Pin SMC T/R
