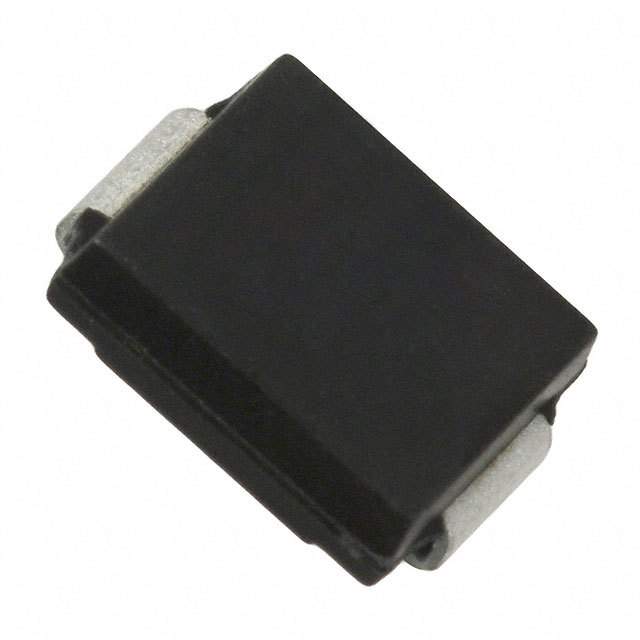

SMLJ14CA

BOURNS  SMLJ14CA  TVS二极管, AEC-Q266, SMLJ系列, 双向, 14 V, 23.2 V, DO-214AB, 2 引脚

SMLJ系列瞬态电压抑制用于浪涌与静电保护应用. 该器件提供5V至170V的工作反向峰值电压与高达200V的击穿电压. 单向器件的快速响应时间小于1ps 典型值, 双向器件小于5ps 典型值, 从0V至最小击穿电压. 它符合JEDEC标准, 可使用标准取放设备进行操作, 并且扁平结构可最大限度地减少滚动.

.

3000W耗散功率

.

工作温度范围: -55至150°C

得捷:
TVS DIODE 14VWM 23.2VC SMC

立创商城:
双向 Vrwm:14V 3kW

e络盟:
TVS二极管, AEC-Q266, TRANSZORB SMCJ系列, 双向, 14 V, 23.2 V, DO-214AB, 2 引脚

艾睿:
Prevent your circuits from experiencing malfunctions from electrostatic discharge with this SMLJ14CA TVS diode from Bourns. This device&s;s maximum clamping voltage is 23.2 V and minimum breakdown voltage is 15.6 V. Its test current is 1 mA. Its peak pulse power dissipation is 3000Min W. Its maximum leakage current is 5 μA. This TVS diode has an operating temperature range of -55 °C to 150 °C.

安富利:
Diode TVS Single Bi-Dir 14V 3KW 2-Pin DO-214AB

Chip1Stop:
Diode TVS Single Bi-Dir 14V 3KW 2-Pin DO-214AB

Newark:
# BOURNS  SMLJ14CA  Transient Voltage Suppressor, TVS, SMLJ Series, Bidirectional, 14 V, DO-214AB, 2, 15.6 V

Electro Sonic:
Diode TVS Single Bi-Dir 14V 3KW 2-Pin SMC

Win Source:
TVS DIODE 14VWM 23.2VC SMC / 23.2V Clamp 129.4A Ipp Tvs Diode Surface Mount SMC DO-214AB
