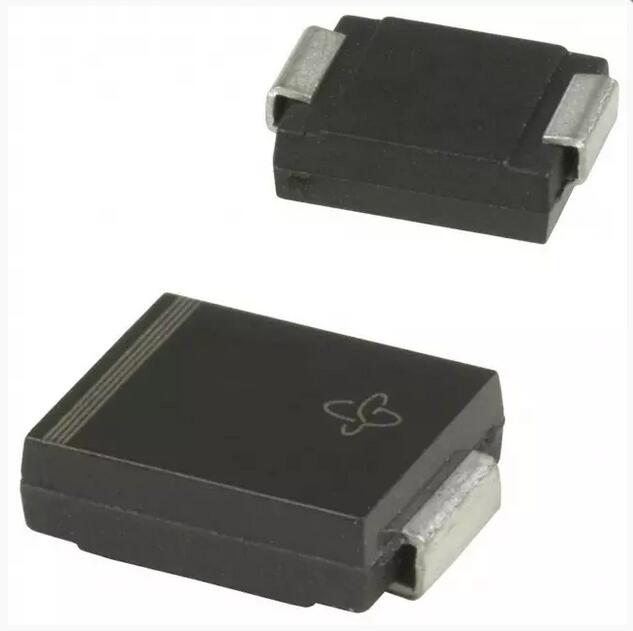

VISHAY SMCJ12CA-E3/57T 二极管, TVS, 1.5KW, 12V, DO-214AB
**Features:**
* Low Profile Package
* Ideal for Automated Placement
* Glass Passivated Chip Junction
* Available in Uni-Directional and Bi-Directional
* Excellent Clamping Capability
* Very Fast Response Time
* Low Incremental Surge Resistance
* Meets MSL Level 1, per J-STD-020, LF Maximum Peak of 260°C
* Solder Dip 260°C, 40 s
* Component in Accordance to RoHS 2002/95/EC and WEEE 2002/96/EC **Applications:** Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.
额定电压DC 12.0 V
额定电流 75.4 A
额定功率 1.50 kW
电路数 1
针脚数 2
耗散功率 1500 W
钳位电压 19.9 V
测试电流 1 mA
最大反向击穿电压 14.7 V
脉冲峰值功率 1.5 kW
最小反向击穿电压 13.3 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温Max 150 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
长度 7.11 mm
宽度 6.22 mm
高度 2.62 mm
封装 DO-214AB
重量 0.211 g
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
