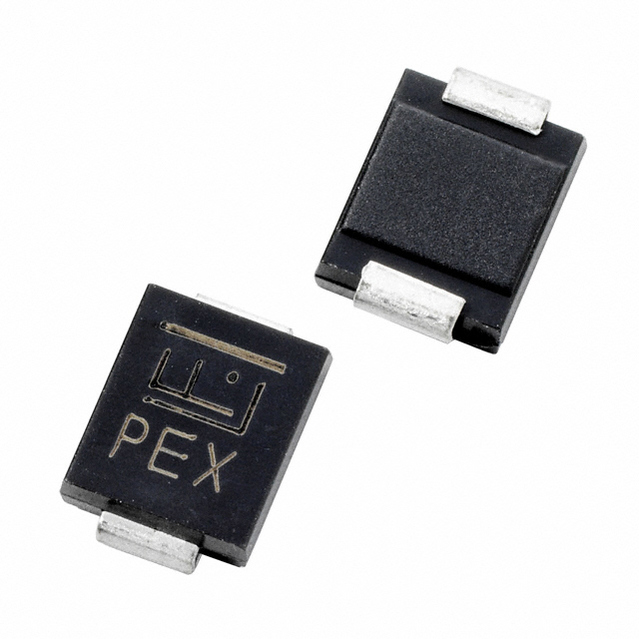

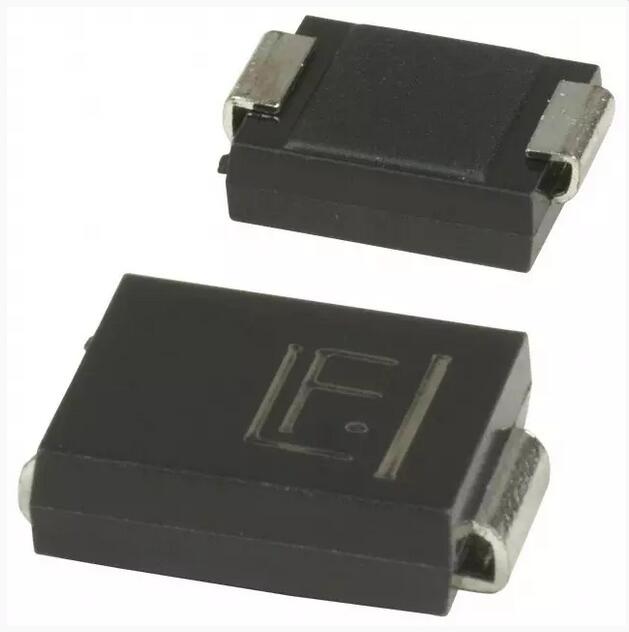

3000W,51V,单通道TVS二极管
Description
The SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
TVS devices are ideal for the protection of I/O Interfaces, VCCbus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic applications.
得捷:
TVS DIODE 51VWM 82.4VC DO214AB
立创商城:
Vrwm:51V 3kW
e络盟:
TVS二极管, SMDJ Series, 单向, 51 V, 82.4 V, DO-214AB, 2 引脚
艾睿:
Diode TVS Single Uni-Dir 51V 3KW 2-Pin DO-214AB T/R
TME:
Diode: transil; 3kW; 59.7V; 36.4A; unidirectional; ±5%; DO214AB
Verical:
Diode TVS Single Uni-Dir 51V 3KW 2-Pin SMC T/R
力源芯城:
3000W,51V,单通道TVS二极管
工作电压 51 V
击穿电压 59.7 V
针脚数 2
耗散功率 3 kW
钳位电压 82.4 V
测试电流 1 mA
最大反向击穿电压 62.7 V
脉冲峰值功率 3000 W
最小反向击穿电压 56.7 V
击穿电压 56.7 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
封装 DO-214AB
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMDJ51A Littelfuse 力特 | 当前型号 | 当前型号 |
SMDJ51A-T7 力特 | 完全替代 | SMDJ51A和SMDJ51A-T7的区别 |
SMDJ51A-HRAT7 力特 | 完全替代 | SMDJ51A和SMDJ51A-HRAT7的区别 |
SMDJ51A-HRA 力特 | 类似代替 | SMDJ51A和SMDJ51A-HRA的区别 |
