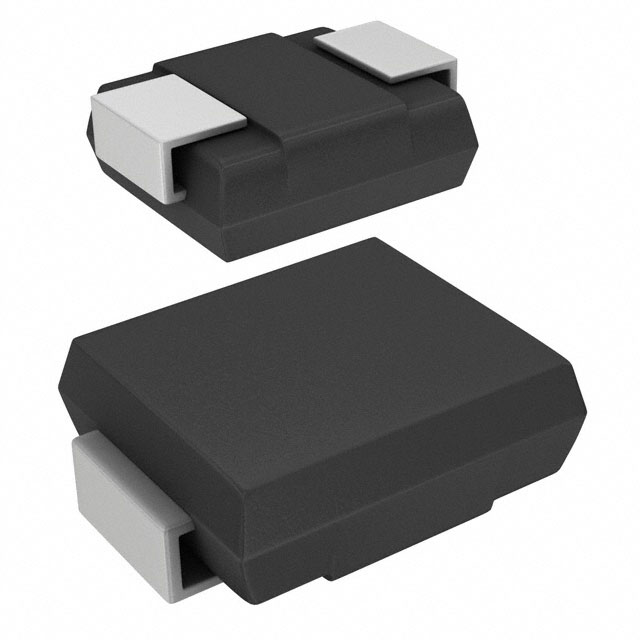

SMLJ48CA-TP

Diode TVS Single Bi-Dir 48V 3kW 2Pin SMC T/R

77.4V Clamp 38.8A Ipp Tvs Diode Surface Mount DO-214AB SMC

得捷:
TVS DIODE 48VWM 77.4VC DO214AB

立创商城:
Vrwm:48V 3kW

艾睿:
Protect users and systems from overvoltage conditions by equipping your electronic equipment with Micro Commercial Components&s; SMLJ48CA-TP TVS diode. Its maximum leakage current is 5 μA. This device&s;s maximum clamping voltage is 77.4 V and minimum breakdown voltage is 53.3 V. Its test current is 1 mA. Its peak pulse power dissipation is 3000Min W. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components.

Chip1Stop:
Diode TVS Single Bi-Dir 48V 3KW 2-Pin SMC T/R
