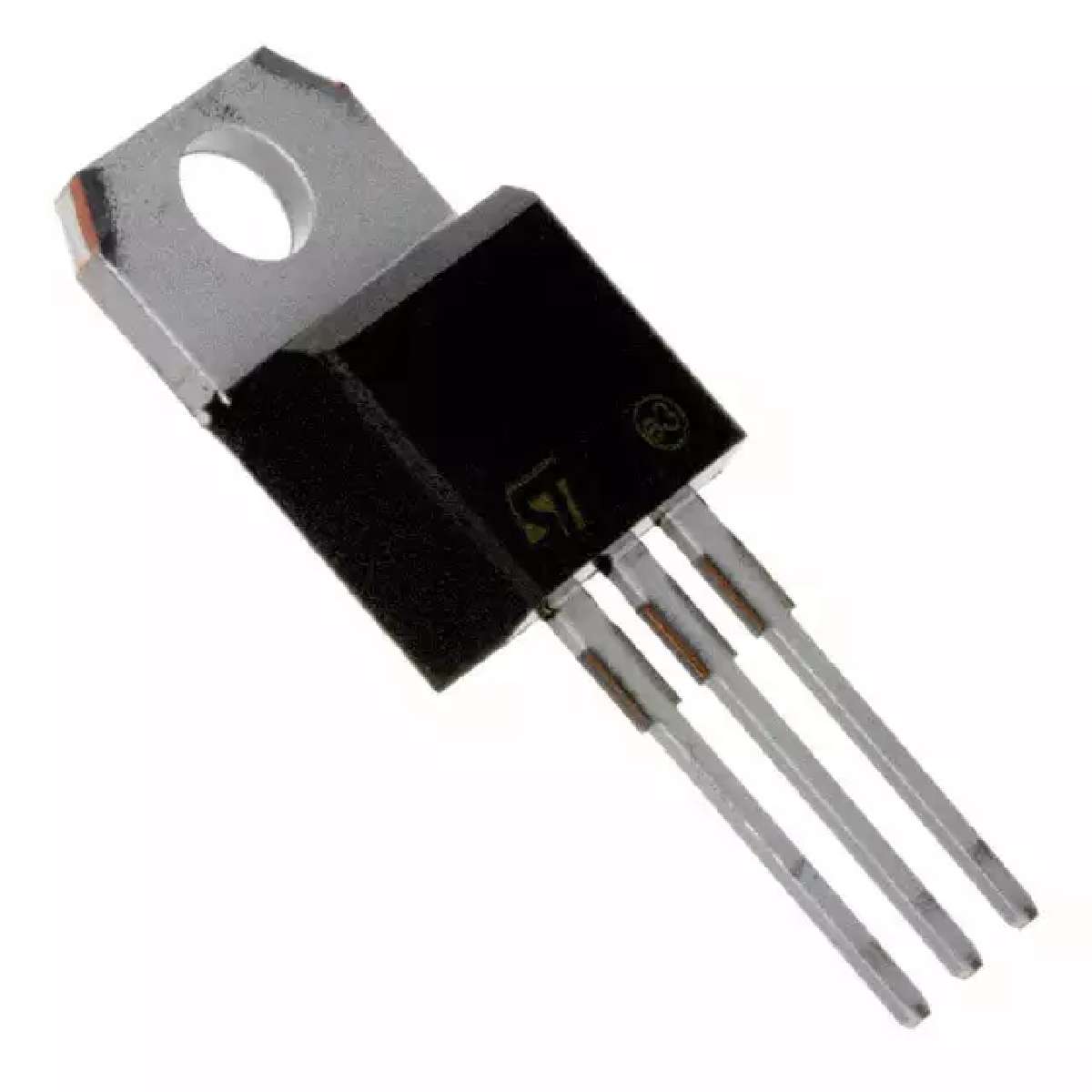

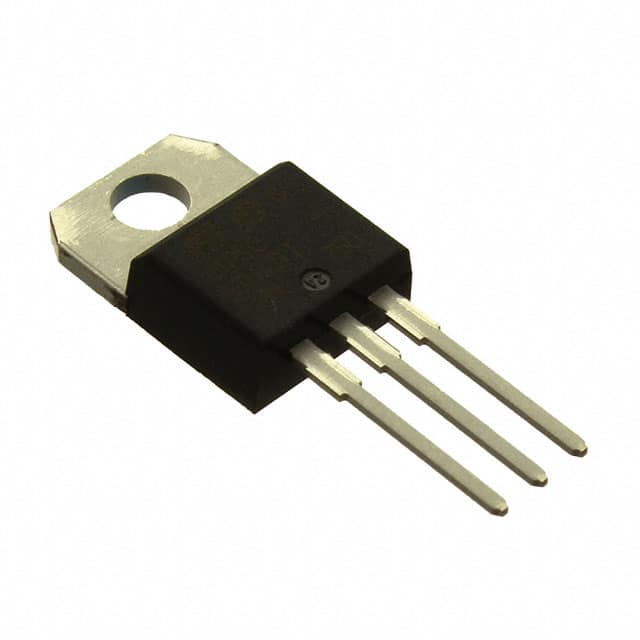

STPSC6TH13TI

STMICROELECTRONICS  STPSC6TH13TI  二极管, 碳化硅肖特基, SIC, 650V系列, 双系列, 650 V, 6 A, 18 nC, TO-220AB

The SiC diode is an ultrahigh performance power Schottky diode. It is manufactured using a silicon carbide substrate. The wide band gap material allows the design of a Schottky diode structure with a 650 V rating. Due to the Schottky construction, no recovery is shown at turn-off and ringing patterns are negligible. The minimal capacitive turn-off behavior is independent of temperature.

Especially suited for use in specific bridge-less topologies, this dual 650 V rectifier will boost the performance in hard switching conditions. Its high forward surge capability ensures a good robustness during transient phases.

**Key Features**

.

No or negligible reverse recovery

.

Switching behavior independent of temperature

.

Suited for specific bridge-less topologies

.

High forward surge capability

.

Insulated package:

.

Capacitance: 7 pF

.

Insulated voltage: 2500 V rms
