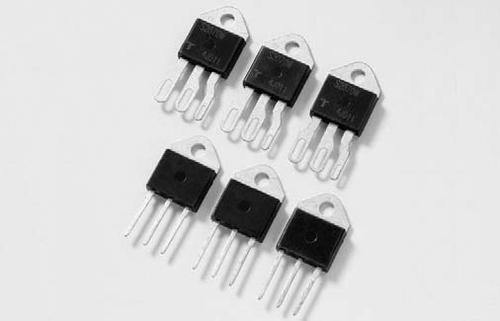

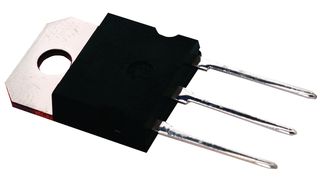

LITTELFUSE S4065KTP 晶闸管, 400V
Keep your scr thyristor manufactured from on by applying a forward-biased voltage to it. This device has a surge current rating of 950 A. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its repetitive peak forward blocking voltage is 400 V, while its repetitive peak reverse voltage is 400 V. This SCR thyristor has a minimum operating temperature of -40 °C and a maximum of 125 °C.
针脚数 3
保持电流 80 mA
保持电流Max 80 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 3
封装 TO-218-3
封装 TO-218-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 HVAC, 照明, 商业, 自动化与过程控制, 安全, 消费电子产品, 工业, 电机驱动与控制, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
S4065KTP Littelfuse 力特 | 当前型号 | 当前型号 |
S6065KTP 力特 | 完全替代 | S4065KTP和S6065KTP的区别 |
S2065KTP 力特 | 完全替代 | S4065KTP和S2065KTP的区别 |
S4065K 力特 | 功能相似 | S4065KTP和S4065K的区别 |
